PCI-1710U-DE
Official DistributorBy Advantech
SKU
ADVPCI1710UDE

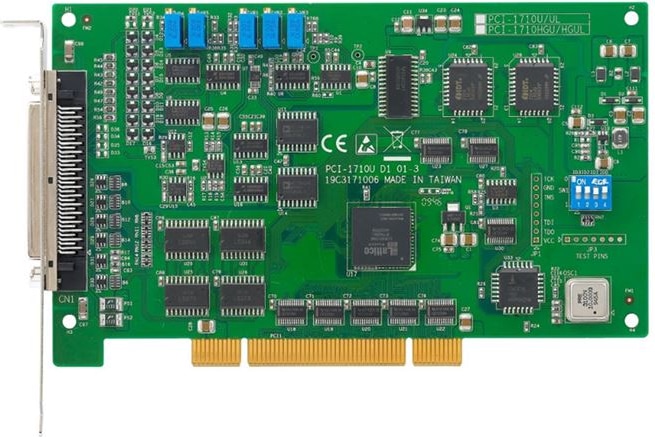

The PCI-1710U Series are multifunction cards for the PCI bus. Their advanced circuit design provides higher quality and more functions, including the five most desired measurement and control functions: 12-bit A/D conversion, D/A conversion, digital input, digital output, and counter/timer.
Features
- 16-ch single-ended or 8-ch differential or a combination of analog input
- 12-bit A/D converter, with up to 100 kHz sampling rate
- Onboard programmable counter
- Two 12-bit analog output channels
- 16-ch digital input and 16-ch digital output
- Automatic channel/gain scanning
- Onboard FIFO memory (4,096 samples)
- Programmable gain
- BoardID™ switch
Documents
Technical Specifications
Analog input
| Channels | 16 |
| Input Range | ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V |
| Resolution(Bits) | 12-bit |
| Sampling Rates(S/s) | 100 KS/s (sum) |
Analog output
| Channels | 2 |
| Output Ranges | 0~5 V, 0~10 V |
| Resolution | 12-bit |
| Update Rate(S/s) | Static update |
Counter/Encoder Input
| Channels | 2 |
| Counting Range | 16-bit |
Digital input
| Channels | 16 (TTL) |
Digital output
| Channels | 16 (TTL) |
General
| Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
Why Proax for Advantech PCI-1710U-DE?
Proax is the authorized distributor of Advantech PCI-1710U-DE. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | PCI1710UDE |
| Pack Size | 1 |
