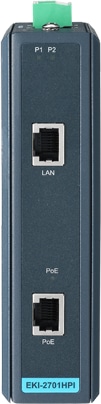

With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HPI is compliant IEEE 802.3af/at and inject 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C and support wide power input range between 24 to 48 VDC.
Features
- Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
- IEEE 802.3af/at compliant, supports a full 30 watt output
- Power input (24 ~ 48 VDC), inject 30 W for each port
- Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
- Supports operating temperatures from -40 to 75°C
Documents
Technical Specifications
Environment
| Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
| Humidity (Operating Range) | 5~95% (non-condensing) |
| Humidity (Storage range) | 0~95% (non-condensing) |
Ethernet Communication
| Ethernet Standard | IEEE 802.3 , 802.3ab , 802.3af , 802.3at , 802.3u , 802.3x |
| RJ-45 Transmission Speed | 10/100/1000 Mbps |
| RJ-45 Transmission Distance | 100 m |
Interface
| Port Number | 2 |
Mechanism
| Dimensions (W x H x D) | 27 x 120 x 85 mm (1.06 x 4.72 x 3.34 in.) |
| Enclosure (Metal) | Metal shell with solid mounting kits |
| Mounting (Wall) | Yes |
| Mounting (DIN-rail) | Yes |
| IP Rating | IP30 |
Power
| Power consumption | Max. 35W (Full load PoE) |
| Power Input (DC) | 24 ~ 48 VDC, redundant dual power inputs |
Protection
| Reverse Polarity | Present |
| Overload Current | Present |
