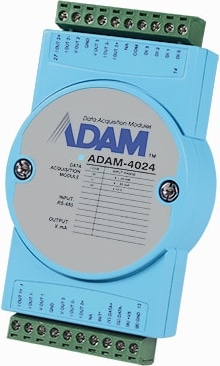

ADAM-4024-B1E
Official DistributorBy Advantech
SKU
ADVADAM4024B1E
ADAM-4024 provides 4 universal type output channels. Moreover, it is designed with 4 Digital inputs for integrating applications, such as emergency latch outputs or users default triggers. It uses optical isolators to prevent ground loop effects and limits damages from power surges. You can specify slew rates and startup currents.
Features
- 4ch analog output/4ch digital input
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 3000VDC isolation protection
Documents
Technical Specifications
Analog output
| Channels | 4 |
| Output Ranges | ±10 V, 0~20 mA, 4~20 mA |
| Output Type | V, mA |
| Resolution | 12-bit |
Communications
| Interface | RS-485 |
Digital input
| Channels | 4 (Isolated) |
| Input Voltage | Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~1 VDC |
| Isolation Protection | 3,000 VDC |
Environment
| Isolation Voltage | 3,000 VDC |
| Operating Temperature | -10~70 °C (14~158 °F) |
General
| Connectors | 2 x 13-pin plug-in screw terminal |
| Protocol | ASCII command, Modbus/RTU |
Hardware
| Certification | CE, FCC |
Power Requirements
| Input Voltage | 10~30 VDC |
Why Proax for Advantech ADAM-4024-B1E?
Proax is the authorized distributor of Advantech ADAM-4024-B1E. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | ADAM4024B1E |
| Pack Size | 1 |
