SW50D4-C
Official DistributorBy Zimmer

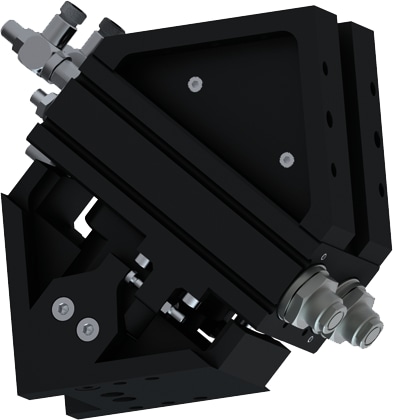

Swivel unit
"The superior" Up to 100% more performance than the benchmark Superior end position damping lets you swivel more mass in the shortest amount of time, increasing your machine's component output Includes two angle flanges Reduce your design and manufacturing efforts with the angle pivot unit aligned on the machine loading system More than 100% higher radial bearing load than the benchmark The generously scaled bearings stand for robustness and long service life and provide the highest process reliability for your application
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | SW50 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Passage bore Ø [mm] | 9 |
| Torque [Nm] | 1.5 |
| Pneumatic energy transfer [Quantity] | 4 |
| Weight [kg] | 1.3 |
| Axial bearing load [N] | 490 |
| Air feed-through [Quantity] | 4 |
| Radial bearing load [Nm] | 25 |
| Nominal operating pressure [bar] | 6 |
| Protection to IEC 60529 | IP64 |
| Series | SW |
| Swivel angle [°] | 180 |
| Swivel time [s] | 0.3 |
| Repetition accuracy +/- [°] | 0.01 |
| Air volume per cycle [cm³] | 15 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
