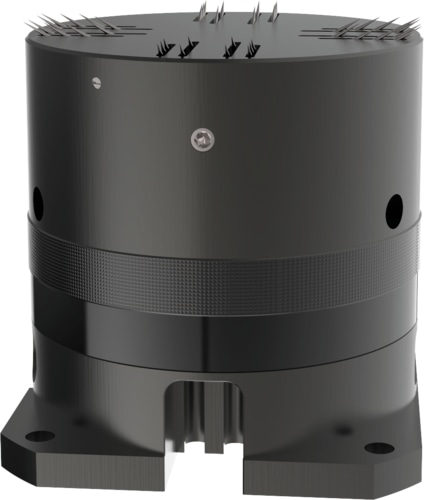

ST40-B
Official DistributorBy Zimmer
SKU
ZIMST40B
Weight
1 kg
Series ST
Needle gripper
Smooth stroke configuration Customise the stroke for your application with infinitely variable adjustment using an adjusting dial Workpiece drain function This function guarantees the quick and reliable deposit of the workpiece and prevents disruptions to the process sequence Query about magnetic field sensor technology Detecting the end position allows you to have shorter cycle times and an integrated control system
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 4 |
| Installation Size | ST40 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Retract time / Extend time [s] | 0.03 |
| Weight [kg] | 0.49 |
| Gripping force in extraction [N] | 160 |
| Number of needles [piece] | 40 |
| Nominal operating pressure [bar] | 6 |
| Needle diameter [mm] | 0.7 |
| Needle stroke adjustable max. [mm] | 2 |
| Needle stroke adjustable min. [mm] | 0 |
| Protection to IEC 60529 | IP30 |
| Series | ST |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 3 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer ST40-B?
Proax is the authorized distributor of Zimmer ST40-B. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | ST40B |
| Pack Size | 1 |
