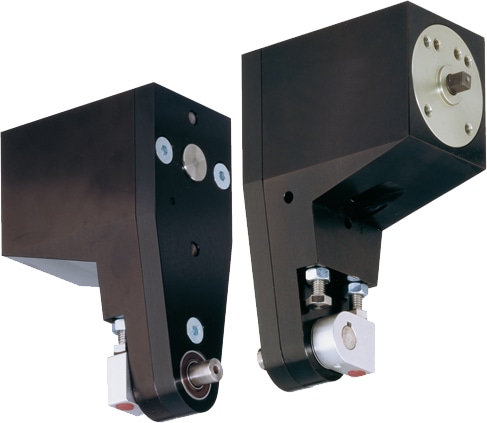

SB54-B
Official DistributorBy Zimmer
SKU
ZIMSB54B
Weight
2.765 kg
Series sb
Swivel jaw
"The economical" Concentration on the essentials The most cost-effective type of swivelling reduces your production costs Proven technology We have more than 20 years of proven reliability, which ensures uninterrupted production for you Flexible swivel angle 90° or 180°; you decide which using the provided limit stops. This allows you to be flexible while only needing to maintain one product in your system
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 7 |
| Operating pressure min. [bar] | 3 |
| Installation Size | SB54 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Torque per jaw [Nm] | 1.6 |
| Fa [N] | 850 |
| FD [N] | 425 |
| FZ [N] | 425 |
| Weight [kg] | 2.8 |
| Weight (pair) [kg] | 2.2 |
| Mr [Nm] | 15.3 |
| Nominal operating pressure [bar] | 6 |
| Protection to IEC 60529 | IP54 |
| Series | SB |
| Swivel angle [°] | 90 / 180 |
| Swivel angle regulable +/- [°] | 3 |
| Repetition accuracy +/- [°] | 0.5 |
| Air volume per cycle [cm³] | 16 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer SB54-B?
Proax is the authorized distributor of Zimmer SB54-B. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | SB54B |
| Pack Size | 1 |
