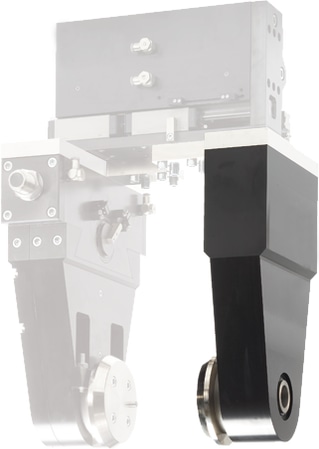

SB190G
Official DistributorBy Zimmer
SKU
ZIMSB190G
Weight
19.539 kg
Series sbz
Counter support
"The superior" Shock absorber with spiral groove technology Superior end position damping lets you swivel more mass in the shortest amount of time, increasing your machine's component output Force transmission via gear wheel set The robust gear wheels stand for precision, reliability and long service life and guarantee smooth operation Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Technical Specifications
| Type of drive | pneumatical |
| Installation Size | SB190 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 25000 |
| FD [N] | 12500 |
| FZ [N] | 6100 |
| Weight [kg] | 20 |
| Mr [Nm] | 600 |
| Nominal operating pressure [bar] | 6 |
| Protection to IEC 60529 | IP54 |
| Series | SBZ |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
