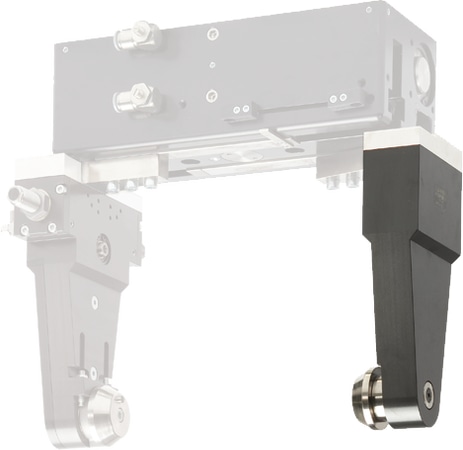

SB100G
By Zimmer
SKU
ZIMSB100G
Weight
2.66 kg
Series sbz
Counter bearing
"The superior" Shock absorber with spiral groove technology Superior end position damping lets you swivel more mass in the shortest amount of time, increasing your machine's component output Force transmission via gear wheel set The robust gear wheels stand for precision, reliability and long service life and guarantee smooth operation Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Technical Specifications
| Type of drive | pneumatical |
| Installation Size | SB100 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 4000 |
| FD [N] | 2000 |
| FZ [N] | 1200 |
| Weight [kg] | 2.7 |
| Mr [Nm] | 70 |
| Nominal operating pressure [bar] | 6 |
| Protection to IEC 60529 | IP54 |
| Series | SBZ |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer SB100G?
Proax is the authorized distributor of Zimmer SB100G. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
