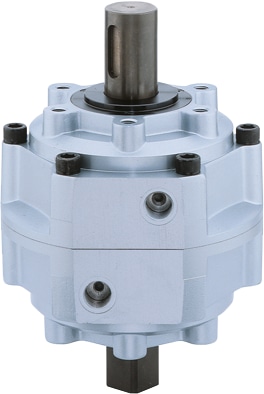

PRN800-270
Official DistributorBy Zimmer
SKU
ZIMPRN800270
Weight
11.9 kg
Series prn
Rotor cylinder
"The economical" Concentration on the essentials The most economic type of swivelling reduces your production costs Dampened end position Using the hydraulic brake allows you to move up to the end positions gently, increasing the process reliability and durability of your application Forged drive shaft This shaft is not only robust, but can be individually adjusted
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 10 |
| Operating pressure min. [bar] | 2 |
| Installation Size | PRN800 |
| Operating temperature max. [°C] | 60 |
| Operating temperature min. [°C] | 5 |
| Torque [Nm] | 123 |
| FZ [N] | 4900 |
| Weight [kg] | 12 |
| Nominal operating pressure [bar] | 6 |
| Protection to IEC 60529 | IP54 |
| Series | PRN |
| Swivel angle [°] | 270 |
| Starting Angle [°] | 45 |
| Swivel time [s] | 1 |
| Tolerance swivel angle [°] | 0° / +3° |
| Air volume per cycle [cm³] | 2092 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer PRN800-270?
Proax is the authorized distributor of Zimmer PRN800-270. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | PRN800270 |
| Pack Size | 1 |
