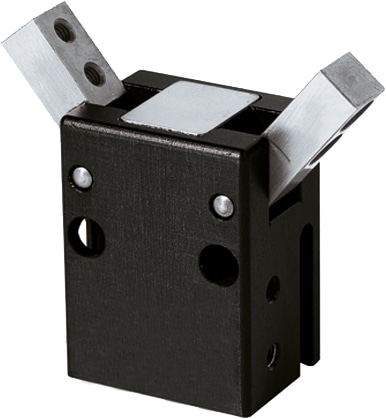

MGW812NC
Official DistributorBy Zimmer
SKU
ZIMMGW812NC
Weight
0.452 kg
Series mgw800
2-jaw angular gripper
"The economical" Concentration on the essentials The most economic type of gripping: This is how you reduce your production costs High moment load The optimally designed angular gear box provides the highest durability for your application Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 4 |
| Installation Size | MGW812 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Gripping moment secured by spring min. [Nm] | 1.1 |
| Fa [N] | 720 |
| Weight [kg] | 0.45 |
| Gripping force in closing [N] | 325 |
| Gripping force in closing at 0° [N] | 325 |
| Gripping moment in closing [Nm] | 5.2 |
| Gripping moment in closing at 0° [Nm] | 5.2 |
| Stroke per jaw [°] | 37.5 |
| Mr [Nm] | 2.3 |
| My [Nm] | 2.3 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 325 |
| Opening time [s] | 0.06 |
| Position sensing | Magnetic field |
| Protection to IEC 60529 | IP30 |
| Series | MGW800 |
| Closing time [s] | 0.03 |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 27.6 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
