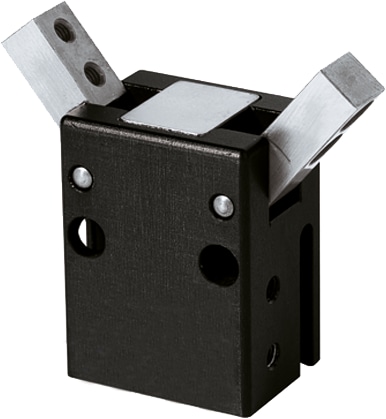

MGW810N
Official DistributorBy Zimmer
SKU
ZIMMGW810N
Weight
1 kg
Series mgw800
2-jaw angular gripper
"The economical" Concentration on the essentials The most economic type of gripping: This is how you reduce your production costs High moment load The optimally designed angular gear box provides the highest durability for your application Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | MGW810 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 500 |
| Weight [kg] | 0.28 |
| Gripping force in opening [N] | 235 |
| Gripping force in closing [N] | 205 |
| Gripping force in closing at 0° [N] | 205 |
| Gripping moment in opening [Nm] | 3.3 |
| Gripping moment in closing [Nm] | 2.9 |
| Gripping moment in closing at 0° [Nm] | 2.9 |
| Stroke per jaw [°] | 37.5 |
| Mr [Nm] | 1.6 |
| My [Nm] | 1.6 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 205 |
| Opening time [s] | 0.03 |
| Position sensing | Magnetic field |
| Protection to IEC 60529 | IP30 |
| Series | MGW800 |
| Closing time [s] | 0.03 |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 14.1 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer MGW810N?
Proax is the authorized distributor of Zimmer MGW810N. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
