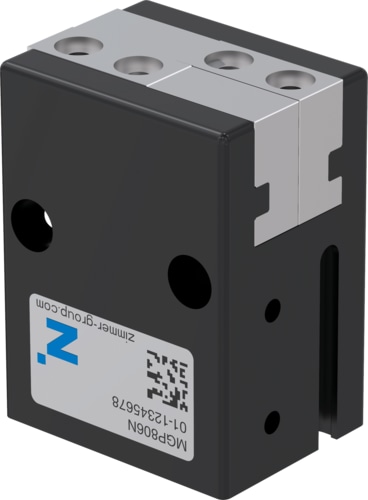

MGP806NC
Official DistributorBy Zimmer
SKU
ZIMMGP806NC
Series mgp800
2-jaw parallel gripper
"The powerful" Over 40% more powerful than the benchmark Optimisation of weight and force reduces your application costs since all components can have a smaller scale Gripper jaws up to 50% longer than the benchmark The highest force and torque measurement enables flexible use for maximum dynamics Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 4 |
| Installation Size | MGP806 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Gripping force secured by spring min. [N] | 40 |
| Fa [N] | 330 |
| Weight [kg] | 0.1 |
| Gripping force in closing [N] | 140 |
| Stroke per jaw [mm] | 6 |
| Length of the gripper fingers max. [mm] | 60 |
| Mr [Nm] | 4 |
| Mx [Nm] | 14 |
| My [Nm] | 5 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 140 |
| Opening time [s] | 0.04 |
| Position sensing | Magnetic field |
| Clean room applications according to DIN EN ISO 14644-1 | 6 |
| Protection to IEC 60529 | IP40 |
| Series | MGP800 |
| Closing time [s] | 0.02 |
| Repetition accuracy +/- [mm] | 0.025 |
| Dead weight of mounted gripper finger max. [kg] | 0.08 |
| Air volume per cycle [cm³] | 5.4 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer MGP806NC?
Proax is the authorized distributor of Zimmer MGP806NC. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
