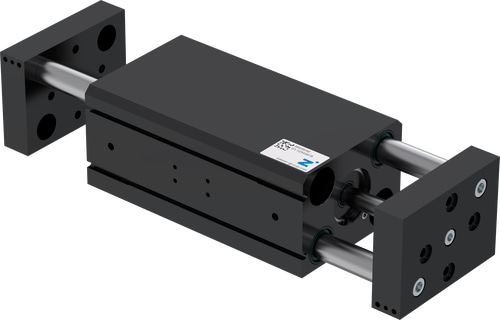

MGH8240
Official DistributorBy Zimmer
SKU
ZIMMGH8240
Series mgh8000
2-jaw parallel gripper
"The compact" Reduced interference contours Low-profile designs and versatile screw connection options enable simple integration into your design Dirt protection Using the scrapers on the guides, you can reliably use the gripper even under the harshest conditions Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | MGH8240 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 760 |
| Weight [kg] | 2.7 |
| Gripping force in opening [N] | 570 |
| Gripping force in closing [N] | 500 |
| Stroke per jaw [mm] | 40 |
| Mr [Nm] | 64 |
| Mx [Nm] | 64 |
| My [Nm] | 45 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 500 |
| Opening time [s] | 0.14 |
| Position sensing | Array |
| Protection to IEC 60529 | IP54 |
| Series | MGH8000 |
| Closing time [s] | 0.18 |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 128 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer MGH8240?
Proax is the authorized distributor of Zimmer MGH8240. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
