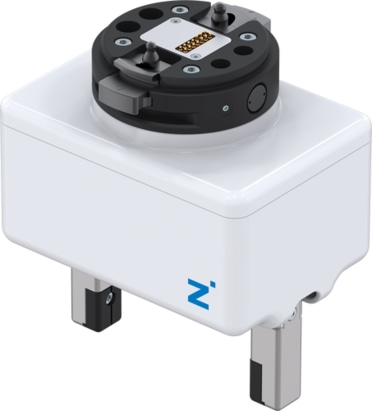

LWR50L-02-00001-A
Official DistributorBy Zimmer
Documents
Series LWR
Series LWR is a line of compact, precise parallel grippers built for robot end-of-arm applications. They offer long stroke options, high repeatability, and simple electrical control.
Electric 2-jaw parallel grippers
Stroke options from short to long travel (up to about 60 mm per jaw)
High repeatability around ±0.02 mm
Gripping force range roughly 180–360 N depending on model
24 V operation with IO-Link or simple digital I/O control
Compact size for tight automation cells
Compatible with Zimmer MATCH ecosystem for quick tool changes
Best use cases Pick and place, assembly, electronics, lab automation, and any application needing a precise, compact electric gripper.
| Control | IO-Link |
| Type of drive | electrical |
| Drive | BLDC motor |
| Tightening force [N] | 50 |
| Offset at coupling max. in X,Y [mm] | 1 |
| Operating pressure for energy transmission [bar] | Fehlende Variable |
| Operating pressure [bar] | Fehlende Variable |
| Operating temperature [°C] | 5 ... +50 |
| Operating temperature max. [°C] | 50 |
| Operating temperature min. [°C] | 5 |
| Electrical energy transfer | integrated |
| Fa [N] | 500 |
| Weight [kg] | 1.6 |
| Gripping force in accordance with ISO/TS 15066 [N] | <140 |
| Gripping force min. [N] | 15 |
| Stroke per jaw [mm] | 40 |
| Stroke per jaw, adjustable [mm] | 40 |
| Integrated position sensing | yes |
| Cable management | internal |
| Length of the gripper fingers max. [mm] | 80 |
| Release force [N] | 0 |
| Minimum positioning path per jaw [mm] | 2 |
| Mr [Nm] | 25 |
| HRC design according to ISO/TS 15066 | Yes |
| HRC form | collaborative |
| Mx [Nm] | 25 |
| My [Nm] | 25 |
| Nominal gripping force [N] | 165 |
| Suitable for series | LWR50F-xx-03/04/05 |
| Current consumption max. [A] | 1.6 |
| Protection to IEC 60529 | IP40 |
| Series | LWR |
| Self locking mechanism | mechanical |
| Voltage [V] | 24 |
| Control time [s] | 0.125 |
| Locking stroke [mm] | 1 |
| Jaw speed in force mode max. [mm/s] | 24 |
| Jaw speed in positioning mode max. [mm/s] | 55 |
| Repetition accuracy +/- [mm] | 0.05 |
| Repetition accuracy in X, Y [mm] | 0,05 |
| Repetition accuracy in Z [mm] | 0,05 |
| Dead weight of mounted gripper finger max. [kg] | 0,3 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
