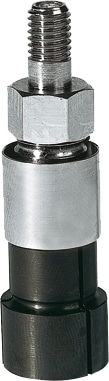

LG4-20
Official DistributorBy Zimmer
SKU
ZIMLG420
Series lgs
Internal gripper
Concentration on the essentials The most economic type of gripping: This is how you reduce your production costs Individually machinable clamping jaws You have never adjusted a gripper to your application this quickly and easily Direct drive The control system with only one pneumatic line reduces installation effort and interference contours
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 6 |
| Operating pressure min. [bar] | 4 |
| Installation Size | LG4-20 |
| Operating temperature max. [°C] | 60 |
| Operating temperature min. [°C] | 5 |
| Gripping diameter min. [mm] | 4 |
| Weight [kg] | 0.08 |
| Gripping moment in opening [Nm] | 0.5 |
| Machining length of the collet max. [mm] | 9 |
| Nominal operating pressure [bar] | 6 |
| Opening time [s] | 0.1 |
| Protection to IEC 60529 | IP40 |
| Series | LGS |
| Closing time [s] | 0.1 |
| Air volume per cycle [cm³] | 1 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer LG4-20?
Proax is the authorized distributor of Zimmer LG4-20. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | LG420 |
| Pack Size | 1 |
