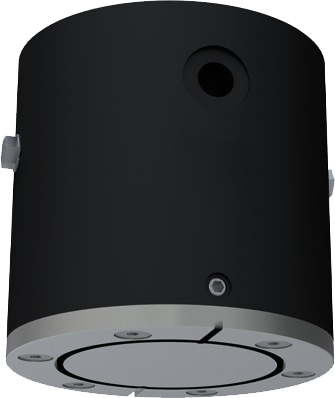

HM1097NC
Official DistributorBy Zimmer
SKU
ZIMHM1097NC
Weight
2.153 kg
Series hm1000
Magnetic gripper
Secure hold during EMERGENCY STOP Magnets attached to springs ensure your workpiece remains secure, even during a drop in pressure Contact plate that increases friction value The replaceable O-ring ensures the high dynamics in your application and protection of your workpiece Residual holding force < 1N The demagnetised contact surface safeguards the process reliability of dropping off your workpiece
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | HM1097 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Weight [kg] | 2.2 |
| Adhesive force max. [N] | 450 |
| Nominal operating pressure [bar] | 6 |
| Protection to IEC 60529 | IP30 |
| Series | HM1000 |
| Air volume per cycle [cm³] | 250 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer HM1097NC?
Proax is the authorized distributor of Zimmer HM1097NC. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
