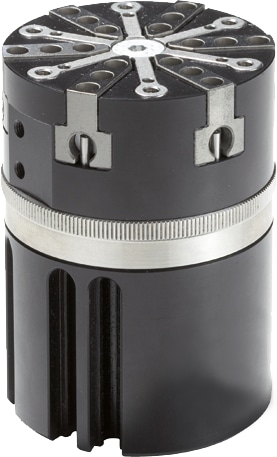

GS65-B
Official DistributorBy Zimmer
SKU
ZIMGS65B
Weight
1 kg
Series GS
O-ring assembly gripper
Proven technology We have more than 20 years of proven reliability, which ensures uninterrupted production for you Adjustable expanding stroke Prevents the O-ring from overexpanding and ensures consistent production quality Query about magnetic field sensor technology Detecting the end position allows you to have shorter cycle times and an integrated control system
Technical Specifications
| Number of gripping jaws [Quantity] | 6 |
| Stripping stroke [mm] | 5 |
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 4 |
| Installation Size | GS65 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Recommended O-ring diameter max. [mm] | 60 |
| Recommended O-ring diameter min. [mm] | 4 |
| Weight [kg] | 0.53 |
| Nominal operating pressure [bar] | 6 |
| Opening time [s] | 0.05 |
| Protection to IEC 60529 | IP30 |
| Series | GS |
| Opening stroke adjustable per jaw max. [mm] | 6 |
| Opening stroke adjustable per jaw min. [mm] | 3 |
| Opening force [N] | 300 |
| Closing time [s] | 0.05 |
| Repetition accuracy +/- [mm] | 0.05 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer GS65-B?
Proax is the authorized distributor of Zimmer GS65-B. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | GS65B |
| Pack Size | 1 |
