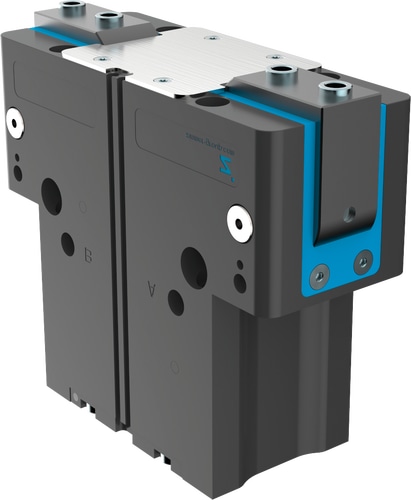

GPW5013NC-00-A
Official DistributorBy Zimmer
2-jaw angular gripper
"The Universal One" Highest performance with the smallest dimensions Features a one-of-a-kind ratio of net mass to gripper finger length and gripping moment. The performance of your machine is increased as a result. Versatile applicability Thanks to standard functionality such as IP64 and corrosion protection, you are able to use these grippers in almost any of your applications. Even the toughest environments are no problem. Robust and process-reliable Thanks to a maintenance-free design up to 30 million cycles and the most solid force transmission possible, process assurance is maximized.
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 4 |
| Operating pressure [bar] | 4 ... 8 |
| Installation Size | GPW5013 |
| Operating temperature [°C] | -10 ... +90 |
| Operating temperature max. [°C] | 90 |
| Operating temperature min. [°C] | -10 |
| Gripping moment secured by spring min. [Nm] | 39.5 |
| Gripping moment secured by spring min. [Nm] | 39.5 |
| Fa [N] | 3300 |
| Weight [kg] | 3 |
| Gripping force in closing at 0° [N] | 4200 |
| Gripping moment in closing at 0° [Nm] | 130 |
| Gripping moment in closing max. [Nm] | 130 |
| Stroke per jaw [°] | 15 |
| Stroke per jaw (+/-) [°] | +15/-2 |
| Protected against corrosion | Yes |
| Length of the gripper fingers max. [mm] | 185 |
| Mr [Nm] | 110 |
| My [Nm] | 130 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 4200 |
| Opening time [s] | 0.12 |
| Position sensing | Array |
| Protection to IEC 60529 | IP64 |
| Series | GPW5000 |
| Closing time [s] | 0.08 |
| Repetition accuracy +/- [mm] | 0.01 |
| Dead weight of mounted gripper finger max. [kg] | 2.4 |
| Air volume per cycle [cm³] | 160 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
