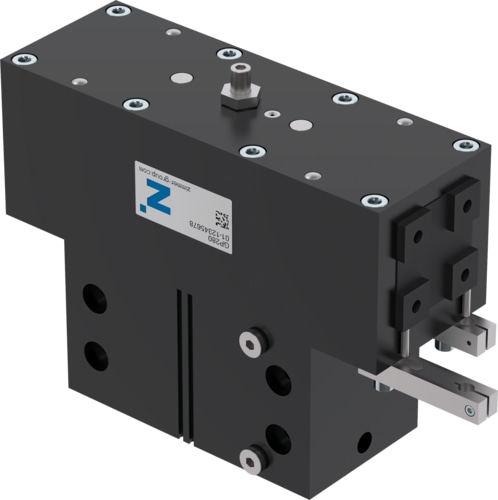

GP280S-99
Official DistributorBy Zimmer
SKU
ZIMGP280S99
Series gp200
2-jaw parallel gripper
"The variable" Smooth stroke configuration An adjusting screw allows you to adjust the stroke to your specific application Proven technology We have more than 20 years of proven reliability, which ensures uninterrupted production for you Dirt protection Using the scrapers on the guides, you can reliably use the gripper even under the harshest conditions
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 10 |
| Operating pressure min. [bar] | 5 |
| Installation Size | GP280 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 1000 |
| Weight [kg] | 8.1 |
| Gripping force in opening [N] | 3690 |
| Gripping force in closing [N] | 3690 |
| Stroke per jaw [mm] | 15 |
| Mr [Nm] | 40 |
| Mx [Nm] | 75 |
| My [Nm] | 40 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 3690 |
| Opening time [s] | 0.2 |
| Position sensing | Array |
| Protection to IEC 60529 | IP40 |
| Series | GP200 |
| Closing time [s] | 0.2 |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 300 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer GP280S-99?
Proax is the authorized distributor of Zimmer GP280S-99. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | GP280S99 |
| Pack Size | 1 |
