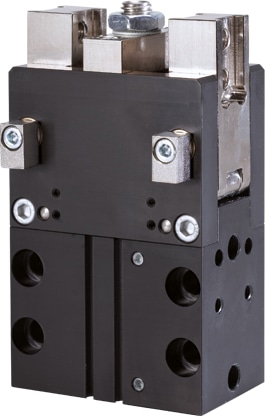

GK40N-B
Official DistributorBy Zimmer
SKU
ZIMGK40NB
Series gk
2-jaw angular gripper
"The compact" Proven technology We have more than 20 years of proven reliability, which ensures uninterrupted production for you Best force/installation space ratio Force transmission using the toggle lever enables high gripping force while optimally utilizing the installation space Smooth stroke configuration You can adjust the 180° opening angle to be unique to your application using an adjusting screw
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | GK40 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 600 |
| Weight [kg] | 1.7 |
| Gripping force in closing [N] | 1400 |
| Gripping force in closing at 0° [N] | 1400 |
| Gripping moment in closing [Nm] | 47 |
| Gripping moment in closing at 0° [Nm] | 47 |
| Stroke per jaw [°] | 90 |
| Mr [Nm] | 17 |
| My [Nm] | 30 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 1400 |
| Opening time [s] | 0.25 |
| Position sensing | Array |
| Protection to IEC 60529 | IP20 |
| Series | GK |
| Closing time [s] | 0.25 |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 78 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer GK40N-B?
Proax is the authorized distributor of Zimmer GK40N-B. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | GK40NB |
| Pack Size | 1 |
