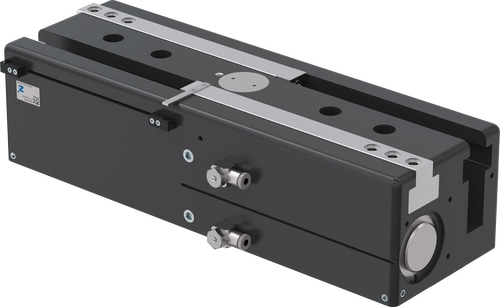

GHK64200
Official DistributorBy Zimmer
SKU
ZIMGHK64200
Weight
23.681 kg
This item is ineligible for free shipping due to its size/weight.
Series ghk6000
2-jaw parallel gripper
"The robust" Securing the workpiece in case of drop in pressure above clamping element on the condition of a positive gripper jaw design Dimensions based on GH6000 series standard gripper Long stroke, up to 200 mm per jaw Stable T-slot guide, guided completely along the entire length of the housing For gripper fingers with a length of up to 600 mm Compact design, through stacked cylinder and guide
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | GHK64200 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| C [mm] | 67.4 |
| F [mm] | 82 |
| Fa [N] | 9000 |
| G [mm] | 41 |
| Weight [kg] | 24 |
| Gripping force in opening [N] | 2900 |
| Gripping force in closing [N] | 3400 |
| Retention force in case of drop in pressure [N] | 1050 |
| Stroke per jaw [mm] | 200 |
| Length of the gripper fingers max. [mm] | 400 |
| Mr [Nm] | 400 |
| Mx [Nm] | 450 |
| My [Nm] | 350 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 3400 |
| Opening time [s] | 1.5 |
| Position sensing | Array |
| Protection to IEC 60529 | IP40 |
| Series | GHK6000 |
| Closing time [s] | 1.5 |
| Repetition accuracy +/- [mm] | 0.05 |
| Dead weight of mounted gripper finger max. [kg] | 6 |
| Air volume per cycle [cm³] | 2370 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
