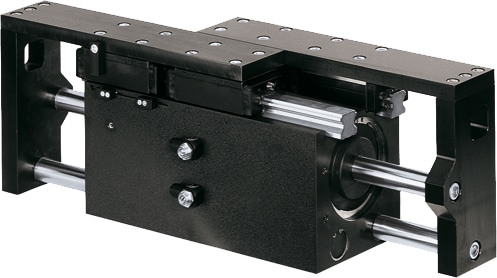

GH7665
Official DistributorBy Zimmer
SKU
ZIMGH7665
Weight
33.068 kg
This item is ineligible for free shipping due to its size/weight.
Series gh7000
2-jaw parallel gripper
"The strong" High gripping force The high gripping force allows you to handle the heaviest workpieces in your application reliably High moment load The heavy-duty linear guide provides the highest possible durability for your application Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | GH7665 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 40000 |
| Weight [kg] | 33 |
| Gripping force in opening [N] | 8500 |
| Gripping force in closing [N] | 8000 |
| Stroke per jaw [mm] | 65 |
| Mr [Nm] | 2000 |
| Mx [Nm] | 2000 |
| My [Nm] | 1500 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 8000 |
| Opening time [s] | 1.1 |
| Protection to IEC 60529 | IP64 |
| Series | GH7000 |
| Closing time [s] | 1.1 |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 1985 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer GH7665?
Proax is the authorized distributor of Zimmer GH7665. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
