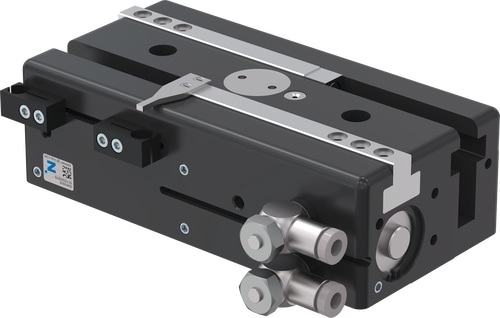

GH6160-B
Official DistributorBy Zimmer
2-jaw parallel gripper
"The robust" Gripper jaws may be up to 25% longer in comparison to the benchmark The highest force and torque measurement enables flexible for maximum dynamics Over 30% more powerful than the benchmark Optimisation of weight and force reduces your application costs since all components can have a smaller scale Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles Securing the workpiece in case of drop in pressure above clamping element on the condition of a positive gripper jaw design (only for variant GHK)
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | GH6160 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 1500 |
| Weight [kg] | 1.9 |
| Gripping force in opening [N] | 400 |
| Gripping force in closing [N] | 510 |
| Stroke per jaw [mm] | 60 |
| Length of the gripper fingers max. [mm] | 200 |
| Mr [Nm] | 85 |
| Mx [Nm] | 120 |
| My [Nm] | 75 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 510 |
| Opening time [s] | 0.3 |
| Position sensing | Array |
| Protection to IEC 60529 | IP40 |
| Series | GH6000 |
| Closing time [s] | 0.3 |
| Repetition accuracy +/- [mm] | 0.05 |
| Dead weight of mounted gripper finger max. [kg] | 1 |
| Air volume per cycle [cm³] | 109 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer GH6160-B?
Proax is the authorized distributor of Zimmer GH6160-B. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | GH6160B |
| Pack Size | 1 |
