GED6140IL-03-A
Official DistributorBy Zimmer

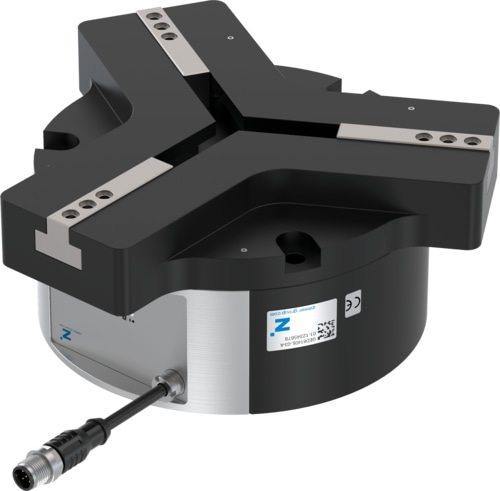

3-jaw concentric gripper
"Highest performance" 5 million maintenance-free cycles Integrated sensing via IO-Link Servo drive with integrated controller Brushless drive technology, position, speed and force control guarantee the highest amount of functionality IO-Link on board In addition to the unshielded single-cable solution, the future-proof, hot-pluggable activation provides you with a wide variety of travel profiles for easy implementation into your control system Gentle yet powerful Power version -03 for handling heavy workpieces with mechanical self-locking and version -31 for gently gripping of delicate parts
| Control | IO-Link |
| Type of drive | electrical |
| Drive | BLDC motor |
| Installation Size | GED6140IL |
| Operating temperature max. [°C] | 50 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 1500 |
| Weight [kg] | 4.9 |
| Gripping force min. [N] | 210 |
| Stroke per jaw [mm] | 40 |
| Stroke per jaw, adjustable [mm] | 40 |
| Cable management | external |
| Length of the gripper fingers max. [mm] | 160 |
| Minimum positioning path per jaw [mm] | 2 |
| Mr [Nm] | 70 |
| Mx [Nm] | 80 |
| My [Nm] | 60 |
| Nominal gripping force [N] | 1700 |
| Position sensing | Integrated query |
| Clean room applications according to DIN EN ISO 14644-1 | 4 |
| Current consumption max. [A] | 5 |
| Protection to IEC 60529 | IP54 |
| Series | GED6000IL |
| Self locking mechanism | mechanical |
| Voltage [V] | 24 |
| Jaw speed in positioning mode max. [mm/s] | 50 |
| Repetition accuracy +/- [mm] | 0.02 |
| Dead weight of mounted gripper finger max. [kg] | 1 |
| Positionable | Yes |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
