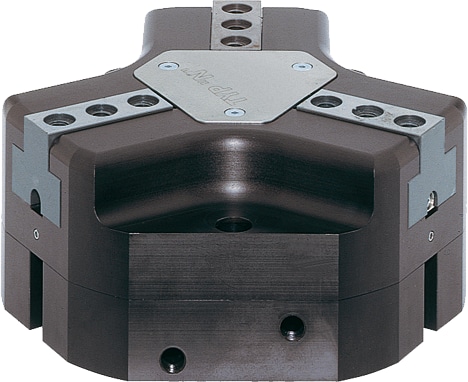

GD316N-C
Official DistributorBy Zimmer
SKU
ZIMGD316NC
Weight
5.097 kg
Series gd300
3-jaw concentric gripper
"The economical" Concentration on the essentials The most economic type of gripping: This is how you reduce your production costs Proven T slot guide This established and proven guiding technology stands for the highest process reliability like no other Compact structure Reduces the interference contours for your application
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 2 |
| Installation Size | GD316 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 5000 |
| Weight [kg] | 5.1 |
| Gripping force in opening [N] | 6600 |
| Gripping force in closing [N] | 6500 |
| Stroke per jaw [mm] | 16 |
| Mr [Nm] | 140 |
| Mx [Nm] | 160 |
| My [Nm] | 180 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 6500 |
| Opening time [s] | 0.25 |
| Position sensing | Array |
| Protection to IEC 60529 | IP40 |
| Series | GD300 |
| Closing time [s] | 0.25 |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 470 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer GD316N-C?
Proax is the authorized distributor of Zimmer GD316N-C. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | GD316NC |
| Pack Size | 1 |
