GD10
Official DistributorBy Zimmer
SKU
ZIMGD10
Weight
0.506 kg
Series GD

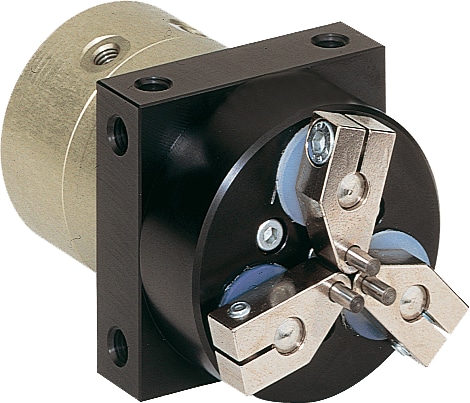

3-jaw concentric gripper
"The flexible" Largest stroke in small installation space You can cover numerous application variants with just one gripper type Gripper jaws included in the delivery Reduces your design effort, manufacturing costs and setup time Smooth stroke configuration Using the optionally available stroke limit, you can customise the stroke to your application, even stroke sensing is possible
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | GD10 |
| Operating temperature max. [°C] | 60 |
| Operating temperature min. [°C] | 5 |
| Fa [N] | 30 |
| Gripping diameter in opening max. [mm] | 51 |
| Gripping diameter in opening min. [mm] | 11 |
| Gripping diameter in closing max. [mm] | 45 |
| Gripping diameter in closing min. [mm] | 5 |
| Weight [kg] | 0.35 |
| Gripping force in opening [N] | 100 |
| Gripping force in closing [N] | 100 |
| Gripping moment in opening [Nm] | 1 |
| Gripping moment in closing [Nm] | 1 |
| Stroke per jaw [°] | 180 |
| Stroke per jaw [mm] | 20 |
| Mr [Nm] | 1 |
| Mx [Nm] | 1 |
| My [Nm] | 0.5 |
| Nominal operating pressure [bar] | 6 |
| Nominal gripping force [N] | 100 |
| Opening time [s] | 0.07 |
| Protection to IEC 60529 | IP40 |
| Series | GD |
| Closing time [s] | 0.07 |
| Repetition accuracy +/- [mm] | 0.05 |
| Air volume per cycle [cm³] | 20 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
