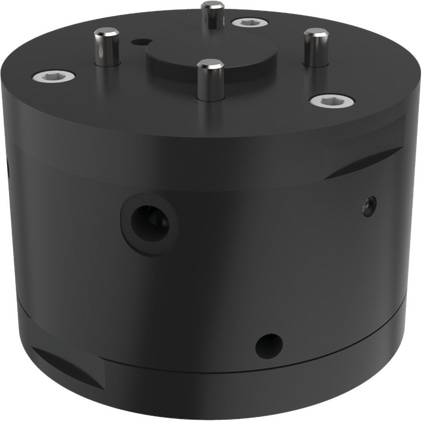

FGR1050
Official DistributorBy Zimmer
SKU
ZIMFGR1050
Axis compensation module
Effortless joining process The ease of movement makes it possible to carry out even the finest joining processes in the shortest amount of time Single-acting pneumatic cylinder For easy control and a reduced amount of piping required Can be fixed in place centrally or de-centrally For the optimal process sequence, depending on the requirement, you can clamp or centrally lock the equalizer position
Technical Specifications
| Connecting flange according EN ISO 9409-1 | TK 50 |
| Horizontal deviation +/- [mm] | 4 |
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 4 |
| Operating pressure [bar] | 4 ... 8 |
| Installation Size | FGR1050 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Recommended handling weight [kg] | 20 |
| Fa [N] | 1000 |
| Weight [kg] | 1.8 |
| Retention force decentred [N] | 140 |
| Retention force centred [N] | 250 |
| Mr [Nm] | 6 |
| My [Nm] | 13 |
| Nominal operating pressure [bar] | 6 |
| Series | FGR |
| Rotation angle max. [°] | 9 |
| Repetition accuracy +/- [mm] | 0.02 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer FGR1050?
Proax is the authorized distributor of Zimmer FGR1050. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
