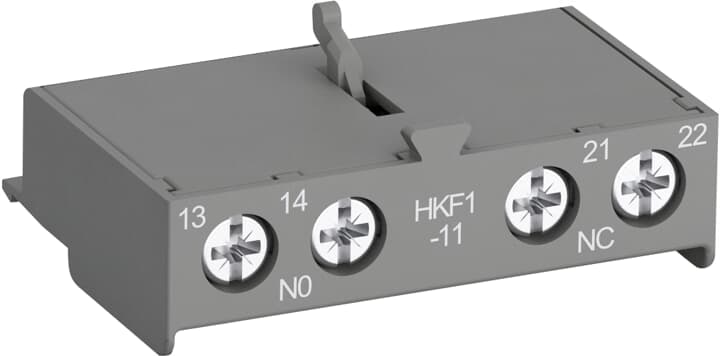

Auxiliary contacts HKF1 change position with the main contacts of the manual motor starter. They are mounted on the front side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HKF1 are available as normally open or normally closed contacts.
Technical Specifications
Dimensions
| Product Net Width | 45 mm |
| Product Net Height | 12.5 mm |
| Product Net Depth / Length | 26.5 mm |
| Product Net Weight | 0.015 kg |
Technical
| Terminal Type | Screw Terminals |
| Rated Operational Voltage | 250 V |
| Rated Operational Current AC-15 (Ie) | (24 V) 3 A, (120 V) 3 A, (240 V) 1.5 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A, (125 V) 0.27 A, (250 V) 0.11 A |
| Rated Frequency (f) | Auxiliary Circuit DC, Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP20 |
| Electrical Durability | 100000 cycle |
| Mechanical Durability | 100000 cycle |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm², Flexible 1/2x 0.75 ... 1.5 mm², Rigid 1/2x 1.0 ... 2.5 mm² |
| Tightening torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| Recommended Screw Driver | M3, Pozidriv 2 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Standards | CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508, UL 60947-1, UL 60947-5-1 |
| Product Name | Auxiliary Contact |
| Suitable for | MS116, MS132, MO132, MS165, MO165 |
| Suitable for Product Class | Manual Motor Starter |
| Accessory Group | Electrical |
| Accessory Type | Auxiliary Contact |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 250 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-14 AWG, Stranded 1/2x 16-14 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Contact Rating UL/CSA | B300, R300 |
Environmental
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -50 ... +80 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5g / 3 ... 150 Hz |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
