Name: 1220809
Brand: Phoenix Contact
SKU: PHX1220809

Official Distributor

By Phoenix Contact

SKU

MPN

PV-PRO/M/F-200/F-1500/17

Weight

0.141 kg

This product is Not Cancellable/Not Returnable

Series PV-PRO-M-F

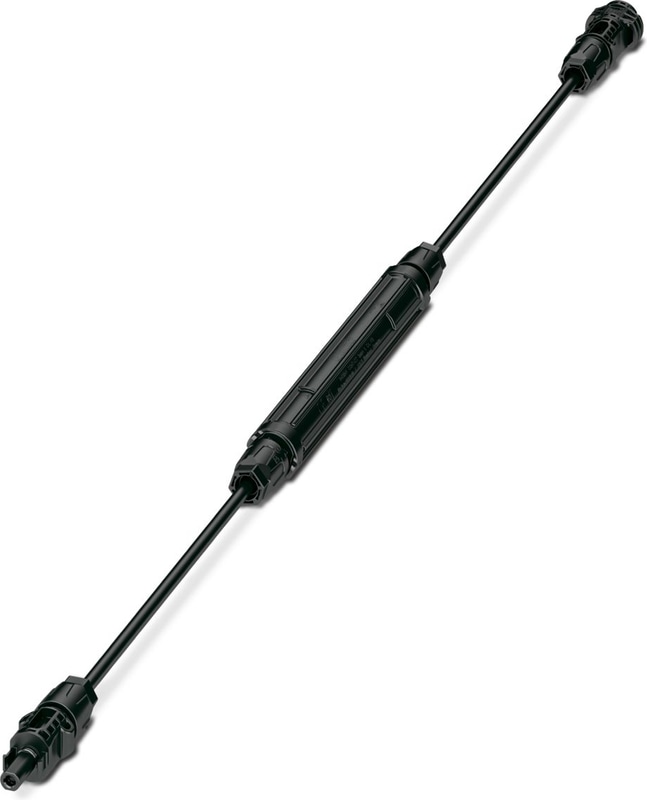

PV-PRO/M/F-200/F-1500/17 - Fuse plug

Fuse plug, Range of articles: SUNCLIX, color: black, rated voltage: 1500 V DC (bis 4000m ü. NN), rated current: 17 A, Connection method: SUNCLIX PV connector, SUNCLIX fuse element for protecting panels and devices in photovoltaic systems

Documents

Technical Document

Notes

General

SUNCLIX fuse element for protecting panels and devices in photovoltaic systems

Product properties

Product family

SUNCLIX

Insulation characteristics

Protection class	II
Degree of pollution	2

Electrical properties

Rated voltage (III/2)	1500 V
Nominal voltage ATD	1500 V DC (bis 4000m ü. NN)
Rated surge voltage	16 kV
Fuse adapter nominal current	17 A DC (Nominal current of the item)
Fuse-link nominal current	20 A DC (Nominal current of the fuse-link)

Connection data

Connection Method

SUNCLIX PV connector

Material specifications

Color	black
Flammability rating according to UL 94	V0

Cable/line

Cable Type

H1Z2Z2-K

Mechanical data

Insertion force	45 N ±10 N
Withdrawal force	250 N ±100 N

Ambient conditions

Degree of Protection	IP66 / IP68 (2 m / 24 h)
Ambient Temperature (Operation)	-40 °C ... 50 °C (Deviating ambient temperatures possible depending on the current carrying capacity/derating curve)
Ambient temperature (assembly)	-25 °C ... 50 °C

Standards and Regulations

Standards/specifications	2 PfG 2380-2014-02
Note	in progress
