BC 71,6 DKL R D2,4 TCG KMGY
Weight
0.046 kg
Series BC

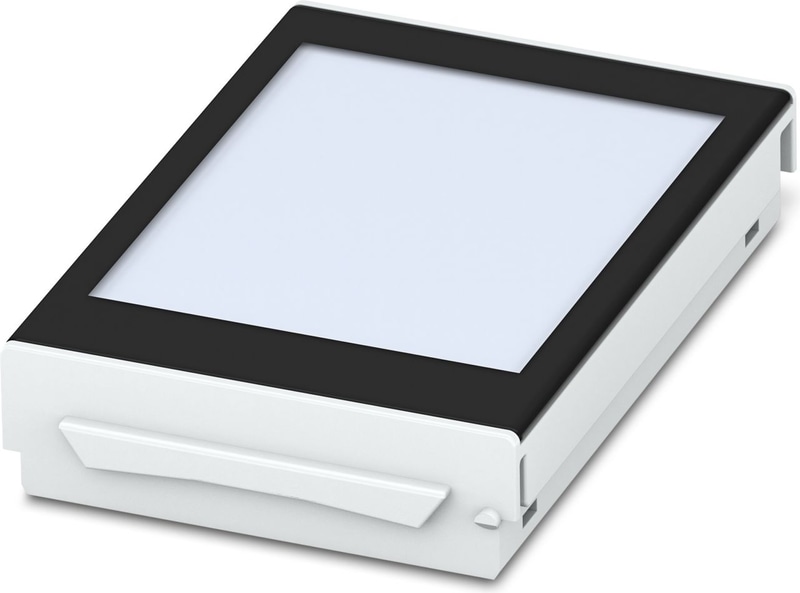

BC 71,6 DKL R D2,4 TCG KMGY - Housing cover with touch display
DIN rail housing for use in distribution boards in accordance with DIN 43880, Latching cover (non-detachable), integrated capacitive 2.4" touch display, resolution: 320 x 240 Pixel(s), interface: 4-wire SPI, width: 71.6 mm, height: 45 mm, depth: 13.5 mm
- Fast device development with integrated 2.4" touch display
- Suitable for different device requirements, thanks to housing versions with and without membrane keypad
- Coordinated housing, keypad, and display design
- Maximum flexibility with many combination options for the housing cover and upper parts
- Customization of membrane keypad via configurator
Documents
Technical Specifications
Notes
| Assembly note | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | DIN rail housing for use in distribution boards in accordance with DIN 43880 |
| Housing series | BC |
| Product family | BC 71,6.. |
| Type | Latching cover (non-detachable), integrated capacitive 2.4" touch display |
| Ventilation openings present | no |
Display
| Display type | TFT, IPS |
| Display type | capacitive |
| Diagonal | 2.4 in. / 6.1 cm (Display) |
| Screen resolution | 320 x 240 Pixel(s) (QVGA) |
| Display formats | 3:4 |
| Display lighting type | LED, white |
| Controller | GT911 (Goodix) |
Interfaces
| Interface | 4-wire SPI |
Dimensions
| Width | 71.6 mm |
| Height | 45 mm |
| Depth | 13.5 mm |
Material specifications
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing Material | PC |
| Surface characteristics | untreated |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Mechanical strength / tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 70 °C |
Mounting
| Mounting Type | Latching with upper housing part |
