1292319
Official DistributorSKU
PHX1292319
MPN
FIL-1S-1-10A-230AC-PT
Weight
0.261 kg
Series FIL

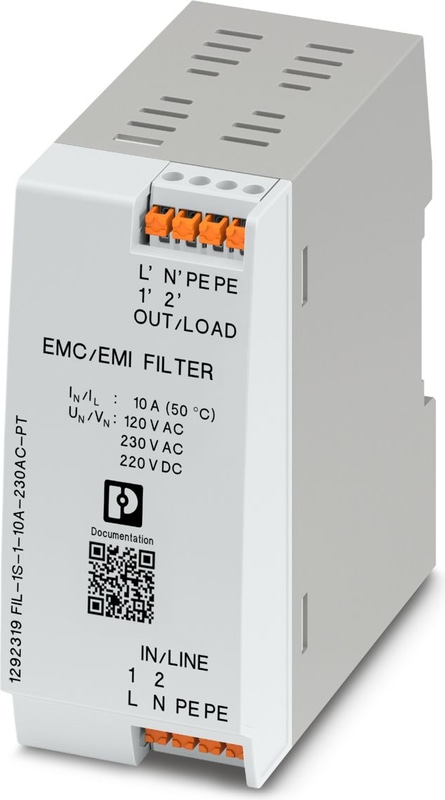

FIL-1S-1-10A-230AC-PT - EMC filter
EMC filter (mains filter) for single-phase AC and DC systems (nominal voltage: up to 230 V AC, up to 220 V DC), for mounting on NS 35, nominal current: 10 A
- Reliable protection of sensitive equipment against high-frequency conducted interference
- Effective attenuation with current-coupled coils and X and Y capacitors
- Versatile in use with universal circuit design
- Improved filter effect with additional PE terminals, for connection to the local protective bonding
- User-friendly handling thanks to easy assembly and installation with Push-in connection technology (PT)
Documents
Technical Specifications
Product properties
| Type | DIN rail module, one-piece |
| Number of Positions | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
| Nominal voltage UN | 230 V AC (TN-S/TT) |
| Nominal voltage UN | 230 V AC (IT, L-L) |
| Nominal voltage UN | 120 V AC (TN-S/TT) |
| Nominal voltage UN | 120 V AC (IT, L-L) |
| Nominal voltage UN | 220 V DC |
| Rated voltage (UR) | 250 V AC |
| Rated voltage (UR) | 250 V DC |
Connection data
| Connection Method | Push-in connection |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 (flexible) |
| Conductor cross section AWG | 24 ... 12 (solid) |
Dimensions
| Width | 45 mm |
| Height | 99 mm |
| Depth | 99.5 mm |
Material specifications
| Color | gray (RAL 7042) |
| Color | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PC-GF10 |
Mechanical data
| Open side panel | No |
Protective circuit
| Nominal frequency fN | 50 Hz (60 Hz) |
| Rated current | 10 A (50 °C) |
| Residual current IPE | ≤ 0.2 mA |
| Input attenuation aE, sym. | > 75 dB (50 Ω / 1 MHz) |
| Input attenuation aE, asym. | > 35 dB (50 Ω / 1 MHz) |
| Capacity | 2x 470 nF (X2) |
| Capacity | 2x 2.2 nF (Y2) |
| Inductivity in series | 2x 3.3 mH (with current compensation) |
| Short-circuit current rating ISCCR | 10 kA AC (gG) |
| Short-circuit current rating ISCCR | 3 kA AC (MCB B) |
| Short-circuit current rating ISCCR | 6 kA DC (gG) |
| Max. required back-up fuse | 6 A AC/DC (gG) |
| Max. required back-up fuse | 10 A AC (MCB B) |
Filter data
| Discharge resistance | 940 kΩ |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 15g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | DNVGL-CG-0339 class A |
Standards and Regulations
| Standards/specifications | IEC 60939-1 |
| Standards/specifications | EN 60939-1 |
| Standards/specifications | IEC 60939-2 |
| Standards/specifications | EN 60939-2 |
| Standards/specifications | UL 60939-3 |
Mounting
| Mounting Type | DIN rail: 35 mm |
