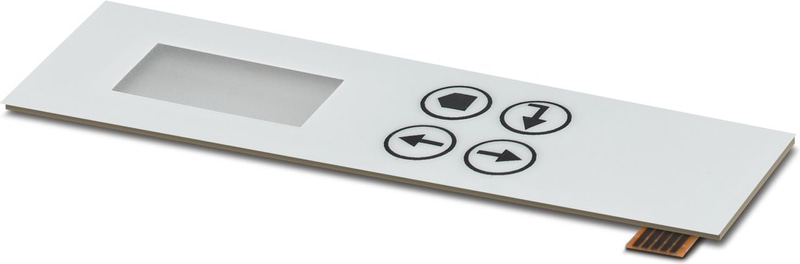

KP ICS25X100 K4 C3 P5 - Membrane keypad
Membrane keypad for ICS25x100, self-adhesive, conductive silver technology, 4 keys, 2 colors, 5-position connection lug, pitch: 1.0 mm, transparent window for 0.96″ TFT display
- Housing system for visualization and operation in the control cabinet
- Customization of membrane keypad via configurator
- Coordinated housings, keypads, and displays
- Positioning of the display using the configurator
Documents
Technical Specifications
Product properties
| Housing type | DIN rail housing |
| Housing series | ICS |
| Product family | ICS25 |
| Number of Positions | 5 |
| Pitch | 1 mm |
| Technology | Conductive silver/graphite (T6/4 Cu/Ag) |
| Number of keys | 4 (2 x 2) |
Dimensions
| Pitch | 1 mm |
| Dimensions | 22 mm x 81 mm |
| Dimensions | 11 mm x 22 mm (LCD cutout) |
Material specifications
| Housing Material | Polyester |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Result | Test passed |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 20 m/s² |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Result | Test passed |
| Acceleration | 150 m/s² |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Test for substances that would hinder coating with paint or varnish
| Specification | VDMA 24364:2018-05 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Mounting
| Mounting Type | adhesive |
