1SCA158287R1001

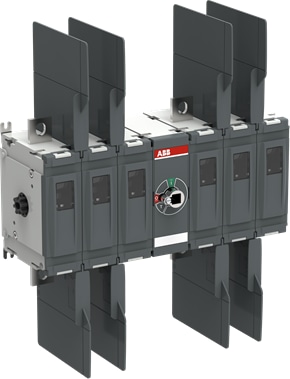

A fully optimized six-pole DC switch-disconnector for 1000V utility-scale photovoltaic power plants covering 315-500A current range. The new design offers both a size reduction and an increase in efficiency and performance.
The six-pole 1000V DC Switch helps manufacturers improve system efficiency. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.
Main characteristics of this particular OTDC type:
Disconnect triple PV circuit, Approved according to IEC 60947-1, -3
Technical Specifications
Dimensions
| Product Frame Size | M |
| Product Net Width | 353.5 mm |
| Product Net Width | 13.9 in |
| Product Net Height | 211 mm |
| Product Net Height | 8.3 in |
| Product Net Depth / Length | 135 mm |
| Product Net Depth / Length | 5.3 in |
| Product Net Weight | 11.1 kg |
| Product Net Weight | 24.6 lb |
Technical
| Connection configuration | Triple circuit 7a,7e |
| Rated Operational Current DC-21B (Ie) | (1000 V) 400 A |
| Rated Operational Current DC-22B | (1000 V) 400 A |
| Rated Operational Current DC-PV1 | (1000 V) 400 A |
| Rated Operational Current DC-PV2 | (1000 V) 400 A |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1500 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Power Loss | at Rated Operating Conditions per Pole 12...13 W |
| Pollution degree | 3 |
| Handle Type | Handle and shaft not included |
| Positive Opening Operation Torque (Direct Opening Action) | 18 … 35 N·m |
| Shaft Diameter | 12 mm |
| Shaft Diameter | 0.47 in |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Switches Operating Mechanism | 33 (Between the Poles) |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Operating mode | Front Operated |
| Standards | IEC 60947-1, -3 |
| Special Functions | No |
| Mounting Type | Base mounting |
| Number of Circuits | 3 |
| Number of Poles | 6 |
| Degree of Protection | Front IP20 |
| Terminal Type | Lug terminals |
| Terminal Width | 30 mm |
| Terminal Width | 1.2 in |
| Mechanical Durability | 10000 cycle |
| Utilization | Photovoltaic |
| Utilization category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Utilization category | Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - occasional actuation (DC-22B) |
| Utilization category | Switching of single PV string(s) without reverse and overcurrents (DC-PV1) |
| Utilization category | Switching of several PV string(s) with reverse and overcurrents (DC-PV2) |
