Official DistributorSKU
MPN
NBC-USB3.1-UCM/1,0-PVC/UCM
Weight
0.051 kg
Series NBC-USB

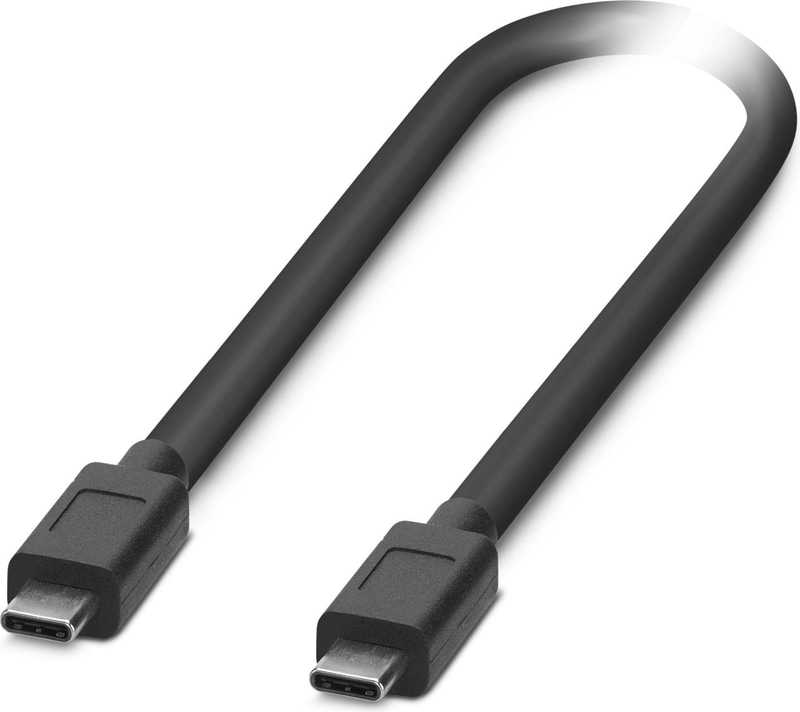

NBC-USB3.1-UCM/1,0-PVC/UCM - USB cable
USB cable, design: USB-C, degree of protection: IP20, cable length: 1 m, number of positions: 24, 10 Gbps, cable outlet: straight, USB 3.2 Gen. 1
- High-speed data transmission up to 10 Gbps
- Minimal space requirements thanks to USB-C connectors
- Reliable data transmission thanks to 100 % testing
Documents
Technical Specifications
Product properties
| Type | USB-C |
| Sensor Type | USB 3.2 Gen. 1 |
| Number of Positions | 24 |
| Connection profile | USB-C |
| Shielded | yes |
| Cable outlet | straight |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 2 |
Interfaces
| Transmission Speed | 10 Gbps |
Electrical properties
| Rated current | 5 A |
| Insulation resistance | 10 MΩ |
| Test voltage | 300 V AC |
| Test voltage | 300 V AC |
| Test voltage Core/Core | 300 V AC |
| Test voltage Core/Shield | 300.00 V AC |
| Contact resistance | < 40 mΩ |
| Transmission characteristics (category) | USB 3.2 Gen 1 |
| Transmission Speed | 10 Gbps |
Mechanical data
| Insertion/withdrawal cycles | > 10000 |
| Insertion force per signal contact | < 20.00 N |
| Extraction force per signal contact | < 8 N |
| Max. bending cycles | 100 |
| Smallest bending radius | 3,7xD |
Material specifications
| Color of the housing part | black |
| Outer sheath, material | PVC |
| Conductor material | Cu |
Dimensions
| Width | 12.1 mm |
| Height | 6.4 mm |
| Length | 42.85 mm |
Connection 1
| Type | Plug straight USB type C |
| Shielded | yes |
| Insertion/withdrawal cycles | 10000 |
| Insulation resistance | 10 MΩ |
| Overvoltage category | I |
| Degree of pollution | 2 |
| Degree of Protection | IP20 |
Connection 2
| Type | Plug straight USB type C |
| Shielded | yes |
| Insertion/withdrawal cycles | 10000 |
| Insulation resistance | 10 MΩ |
| Degree of pollution | 2 |
| Degree of Protection | IP20 |
Cable/line
| Cable Length | 1.00 m |
PVC USB 3.1 black [USB]
| Shielded | yes |
| Cable Type | PVC USB 3.1 black |
| Cable type (abbreviation) | USB |
| External Cable Diameter | 5.00 mm |
| Outer sheath, material | PVC |
| External sheath, color | black |
| Shielding | Aluminum-lined foil |
Test specification
| Cold stress | -40 °C/96 h |
| Thermal stress | 85 °C/96 h |
| Corrosive stress | Salt spray test UL364-26 |
| Insulation resistance, neighboring contacts | 10 MΩ |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Why Proax for Phoenix Contact 1333197?
Proax is an authorized distributor of Phoenix Contact 1333197 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
