SAC-3P-30,0-961/M12FS VA
Weight
1.953 kg
Series SAC-3P
SAC-3P-30,0-961/M12FS VA - Bus system cable

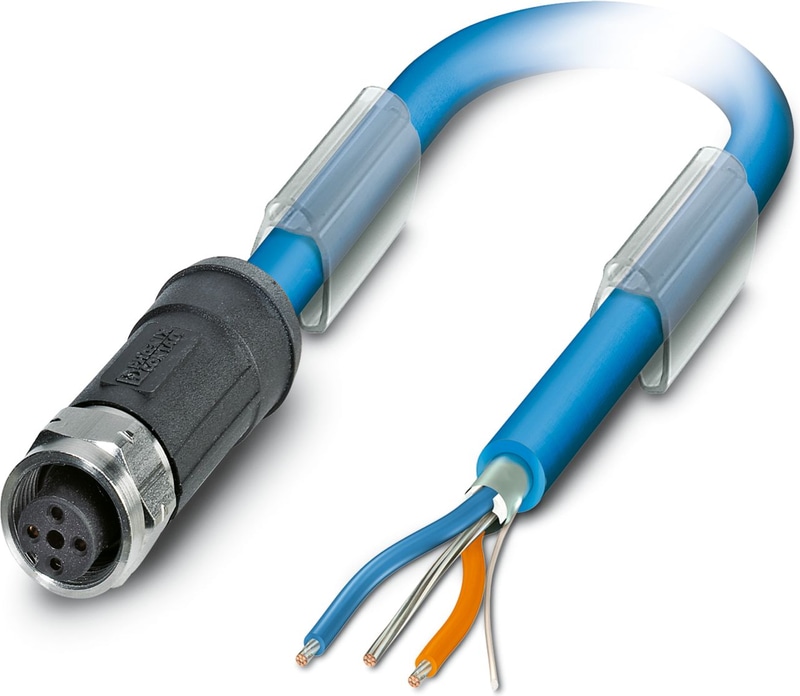

Bus system cable, PROFIBUS PA (31.25 kbps), 3-position, PVC, blue RAL 5015, shielded, free cable end, on Socket straight M12, coding: A, cable length: 30 m, For Ex area with high-grade steel knurl
Documents
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Notes
| General | For applications in circuits of intrinsic safety protection type "i". Electrical values following EN 60079-14. |
Product properties
| Application | Process technology |
| Sensor Type | PROFIBUS PA |
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | B |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Interfaces
| Bus system | PROFIBUS PA |
| Signal type/category | PROFIBUS PA, 31.25 kbps |
Signaling
| Status display | no |
| Status display present | No |
Electrical properties
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 4 A |
| Transmission medium | Copper |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Stainless steel |
Connection 1
| Type | free cable end |
Connection 2
| Type | Socket straight M12 |
| Number of Positions | 3 |
| Coding type | A (Standard) |
Cable/line
| Cable Length | 30 m |
Fieldbus FOUNDATION/PROFIBUS PA, blue [961]
| Cable weight | 56.552 kg/km |
| Number of Positions | 2 |
| Shielded | yes |
| Cable Type | Fieldbus FOUNDATION/PROFIBUS PA, blue [961] |
| Conductor structure | 2xAWG18/7 + 1xAWG20/7 |
| Signal speed | 0.66 c |
| Conductor structure signal line | 7x 0.40 mm |
| AWG Signal Line | 18 |
| Conductor Cross Section | 2x 0.75 mm² (Signal line) |
| Conductor Cross Section | 1x 0.5 mm² (Drain wire) |
| Wire diameter incl. insulation | 2.24 mm ±0.05 mm |
| External Cable Diameter | 7.50 mm ±0.25 mm |
| Outer sheath, material | PVC |
| External sheath, color | blue RAL 5015 |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | PO (Signal line) |
| Single wire, color | blue, orange |
| Thickness, insulation | 0.50 mm |
| Thickness, outer sheath | 1.00 mm |
| Twisted pairs | 2 cores to the pair |
| Overall twist | One pair with one drain wire and fillers for core |
| Optical shield covering | 100 % |
| Max. conductor resistance | ≤ 19.35 Ω/km (Signal line) |
| Max. conductor resistance | 26 Ω/km (shield) |
| Cable capacity | 147 pF/m (at 1 kHz, core/shield) |
| Cable capacity | ≤ 3.94 pF/m (capacitance unbalance) |
| Working capacitance | 78 nF (at 1 kHz) |
| Cable impedance | 100 Ω ±20 % (At 31.25 kHz) |
| Nominal voltage, cable | 300 V |
| Smallest bending radius, fixed installation | 75 mm |
| Tensile strength | 260 N |
| Shield attenuation | 3.00 dB/km (at 39 kHz) |
| Flame resistance | UL 1685 (CSA FT 4) |
| Flame resistance | UL 1685 (vertical tray) |
| Flame resistance | UL 1666 (riser) |
| Special Properties | UL standards PLTC-ER and ITC |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
