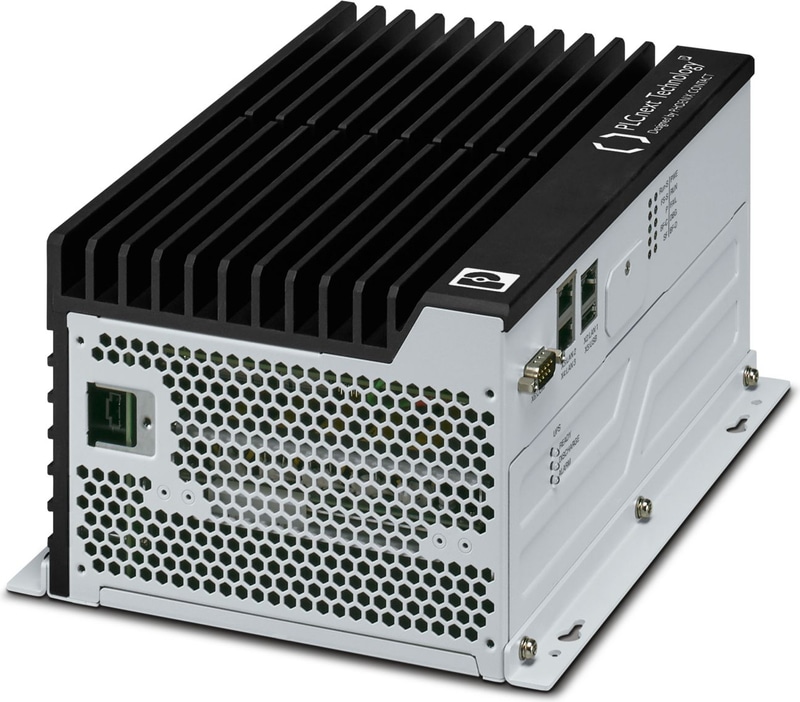

BPC 9102S - Safety controller
PLCnext Control with 3x Ethernet 1000/2000 Mbps, PROFINET controller with integrated PROFIsafe safety controller, PROFINET device, IP20 degree of protection, pluggable parameterization memory
- Integrated PROFINET controller and PROFINET device
- Support for PROFIsafe Profile V2.6.1
- Safety: highest level of safety of machinery, thanks to diversified processors and the support of up to 300 PROFIsafe devices
- PLCnext Technology for preferred programming languages and programming environments, open-source software, apps, PROFICLOUD, and soon, also PLCnext Store with real-time execution
- Performance: Use of one Intel® Core™ i7 octacore processor and two powerful processors based on ARM architecture enables one of the best performance capabilities on the market.
- 3 independent Ethernet interfaces
- Optional pluggable fan module allows reliable operation, even under challenging ambient conditions.
Documents
Technical Specifications
Note on application
| Note on application | Only for industrial use |
Product properties
| Product family | PLCnext Control |
| Type | Stand-Alone |
Insulation characteristics
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
System properties
| Trusted Platform Module | fTPM 1.2 (Encryption technology not Chinese) |
| Processor | Arm® Cortex®-A9 800 MHz (CPU1) |
| Processor | Arm® Cortex®-A8 600 MHz (CPU2) |
| Processor | Intel®Core™ i7-10700TE, 8x 2 GHz (Standard) |
| Retentive data storage | 4 Mbyte |
| RAM | 16384 Mbyte DDR4-2400 |
IEC 61131 runtime system
| Program Memory | 32 Mbyte |
| Data storage system | 64 Mbyte |
PROFINET
| Device function | PROFINET controller, PROFINET device |
| Update rate | min. 1 ms |
| Conformance class | B |
| Number of supported devices | max. 256 |
Function
| Safety function | yes |
Functionality
| Programming languages supported | Instruction list (IL) |
| Programming languages supported | Symbolic flowchart (SFC) |
| Programming languages supported | Ladder diagram (LD) |
| Programming languages supported | Function block diagram (FBD) |
| Programming languages supported | Structured text (ST) |
| Programming languages supported | C++ |
| Programming languages supported | C# |
| Programming languages supported | Java |
| Programming languages supported | Python® |
| Programming languages supported | Simulink® |
System requirements
| Engineering tool | PLCnext Engineer |
| Engineering tool | Eclipse® |
| Engineering tool | Visual Studio® |
| Engineering tool | MATLAB®/ Simulink® |
| Application interface | OPC UA® |
Electrical properties
| Power consumption | typ. 50 W |
| Power consumption | max. 55 W |
| Maximum power dissipation for nominal condition | max. 55 W |
Supply
| Supply voltage (DC) | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including ripple (3.6 VPP)) |
| Power supply connection | Screw terminal blocks, plug-in |
| Max. current consumption | 2.3 A |
| Typical current consumption | 2.1 A |
Real-time clock
| Realtime Clock | Integrated (battery backup) |
COMBICON connector
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Interfaces
| Web server | yes |
USB
| Number of interfaces | 1 |
| Connection Method | USB type A, male connector |
Ethernet
| Bus system | RJ45 |
| Number of interfaces | 3 |
| Connection Method | RJ45 jack |
| Transmission Speed | 1000/2000 Mbps (1000 Mbps (LAN 2 and LAN 3), 1000/2000 Mbps (LAN 1)) |
External dimensions
| Width / Height / Depth | 218 mm / 250 mm / 135 mm (without fan module) |
| Width / Height / Depth | 218 mm / 285 mm / 135 mm (With fan module) |
Safety data: EN ISO 13849
| Category | max. 4 |
| Performance level (PL) | max. e |
Safety data: IEC 61508 - High demand
| Safety Integrity Level (SIL) | max. 3 |
Safety data: EN IEC 62061
| Safety Integrity Level Claim Limit (SIL CL) | max. 3 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 60 °C up to 2000 m above mean sea level |
| Ambient Temperature (Operation) | 0 °C ... 55 °C 2000 m ... 3000 m above mean sea level |
| Ambient Temperature (Operation) | 0 °C ... 50 °C 3000 m ... 4000 m above mean sea level |
| Ambient temperature (storage/transport) | -30 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Shock (operation) | 15g (according to IEC 61131-2) |
| Shock (storage/transport) | 20g (in accordance with EN 60068-2-27/IEC 60068-2-27) |
| Vibration (Operation) | 3g (in accordance with EN 60068-2-6/IEC 60068-2-6) |
| Vibration (storage/transport) | 3g (in accordance with EN 60068-2-6/IEC 60068-2-6) |
| Air pressure (operation) | 60 kPa ... 108 kPa (up to 4000 m above mean sea level) |
| Air pressure (storage/transport) | 58 kPa ... 108 kPa (up to 4500 m above mean sea level) |
Mounting
| Mounting Type | Panel mounting |
| Mounting Type | Panel mounting |
