AR40-N04H-Z-D
Official DistributorBy SMC

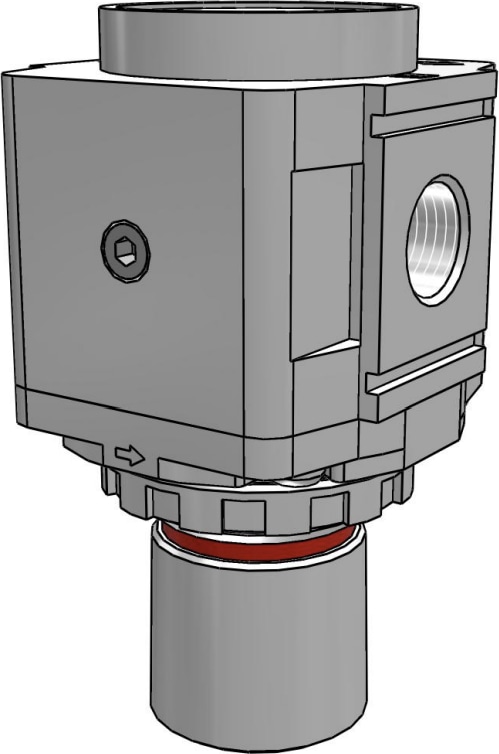

AR40-N04H-Z-D is a modular pressure regulator for maintaining stable downstream air pressure in compressed air systems.
Body size: 40
Port size / thread: 1/2" NPT
Function: Pressure regulator (relieving type)
Pressure range: 0.05 to 0.85 MPa
Mounting option: Panel mounting set nut included (H option)
Digital pressure switch: Not included
Flow direction: Left to right
Pressure units: Dual scale MPa/psi with psi nameplate markings
Backflow function: Not included
Documents
Why Proax for SMC AR40-N04H-Z-D?
Proax is the Elite distributor of SMC AR40-N04H-Z-D and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | AR40N04HZD |
| Pack Size | 1 |
Modular regulator with 1/2"" NPT port, panel-fitting set nut, imperial gauge in psi and °F.
