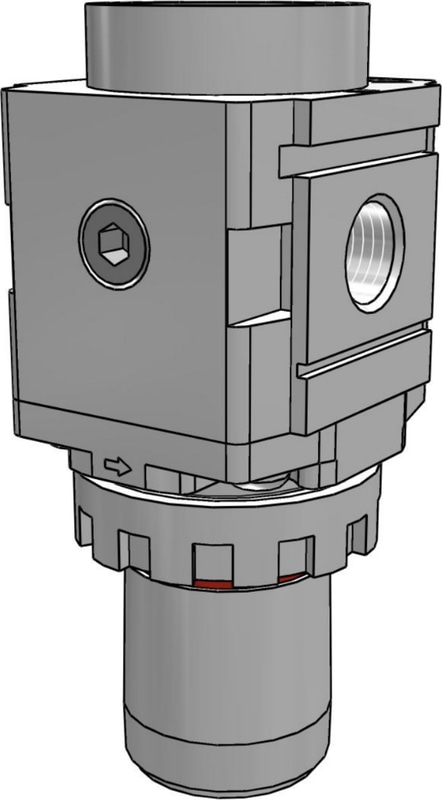

AR20-N02H-Z-D
Official DistributorBy SMC
Compact SMC air regulator designed for reliable compressed air pressure control. This model features a 1/4 in NPT port, 0.05 to 0.85 MPa pressure range, and relieving-type operation for stable performance in pneumatic systems.
Body size 20 regulator
1/4 in NPT port connection
Pressure setting range: 0.05 to 0.85 MPa
Relieving exhaust type
Left-to-right flow direction
Downward adjustment knob
Includes set nut for panel fitting
Standard model without bracket, gauge option, digital pressure switch, or backflow function
Documents
Why Proax for SMC AR20-N02H-Z-D?
Proax is the Elite distributor of SMC AR20-N02H-Z-D and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | AR20N02HZD |
| Pack Size | 1 |
Compact regulator with 1/4 NPT ports, panel mount set nut, psi and °F gauge, ideal for precision control.
