Official DistributorBy ABB
SKU
MPN
2CCS800900R0201
Weight
1 kg

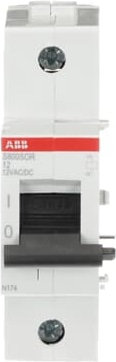

The S800-SOR12 is a 12V shunt opening release is for remote release of the S800 High Performance MCB using an electrical impulse. Operation of the trigger is guaranteed at a voltage between 70% and 110% of the rated voltage Un - both for AC and DC. The S800-SOR12 can be mounted by the user at the left side of S800 High Performance MCB.
Technical Specifications
Technical
| Standards | IEC/EN 60947-2 |
| Suitable for | S800S |
| Suitable for | S800N |
| Suitable for | S800C |
| Suitable for | S800B |
| Suitable for | S800HV |
| Suitable for | S800U |
| Suitable for | S800PV-SP |
| Suitable for | S800PV-SD |
| Suitable for | S800PV-M-H |
| Rated Operational Voltage | 12 V AC/DC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Control Supply Voltage (Us) | (50 Hz) 12...12 V |
| Rated Control Supply Voltage (Us) | (50 Hz) 12...12 V |
| Rated Control Supply Voltage (Us) | (60 Hz) 12...12 V |
| Rated Control Supply Voltage (Us) | (60 Hz) 12...12 V |
| Rated Control Supply Voltage (Us) | (DC) 12...12 V |
| Rated Control Supply Voltage (Us) | (DC) 12...12 V |
| Rated Frequency (f) | 50...60 Hz |
| Power Loss | 15.5 W |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 1 |
| Tightening torque | 3.5 N·m |
| Actuator Marking | I / O |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | Any |
| Recommended Screw Driver | Pozidriv 2 |
| Connecting Capacity | Flexible 1 ... 25 mm² |
| Connecting Capacity | Stranded 1 ... 35 mm² |
| Terminal Type | Screw Terminals |
Dimensions
| Product Net Width | 27 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 150 g |
| Dimension Diagram | 2CCC413003C0201 |
Installation
| Instructions and Manuals | 9AKK106930A3418 |
