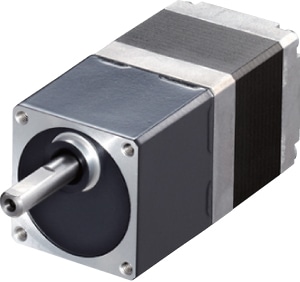

Stepper Motor
Official DistributorSKU
This item is scheduled to discontinued. Please contact technical support for a replacement.
Technical Specifications
Specifications
| Motor Type | 2-Phase |
| Frame Size | 1.1 in |
| Motor Length | 2.24 in. |
| Holding Torque | 56 oz-in |
| Shaft/Gear Type | Spur Gear (Offset Shaft) |
| Gear Ratio (X:1) | 36 :1 |
| Backlash | 90 arc min (1.5°) |
| Shaft | Single |
| Type | Geared |
| Encoder | None |
| Basic Step Angle | 1.8º |
| Motor Connection Type | Connector |
| Connection Type | Bipolar |
| Current per Phase (A/phase) | 1.50 |
| Lead Wires | 4 |
| Voltage (VDC) | 1.80 |
| Resistance (Ω/phase) | 1.20 |
Specifications
| Inductance (mH/phase) | 0.74 |
| Rotor Inertia | 0.05 oz-in² |
| RoHS Compliant | Yes |
| Insulation resistance | 100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 1.0 kVAC at 50 Hz or 60 Hz applied between the windings and the case for 1 minute under normal ambient temperature and humidity. |
| Temperature Rise | Temperature rise of the windings is 144ºF (80ºC) or less measured by the change resistance method. (at rated current, at standstill, 2 phases energized) |
| Insulation Class | Class B [266ºF (130ºC)] |
| Ambient temperature range | 14 ~ 122ºF (-10 ~ 50ºC) (non-freezing) |
| Ambient Humidity | 85% or less (Non-condensing) |
| Shaft Runout | 0.05 mm (0.002 in.) T.I.R. |
| Concentricity | 0.075 mm (0.003 in.) T.I.R. |
| Perpendicularity | 0.075 mm (0.003 in.) T.I.R. |
| Radial Play | 0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.) |
| Axial Play | 0.075 mm (0.003 in.) maximum of 2.5 N (0.56 lb.) |
| Step Accuracy | ±3 arc minutes (±0.05º) |
| Permissible Overhung Load | 0 in. from Shaft End = 3.3 lb |
| Permissible Thrust Load | 2.20 lb |
Why Proax for Oriental Motor PKP223D15A-SG36-L?
Proax is the authorized distributor of Oriental Motor PKP223D15A-SG36-L. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | PKP223D15ASG36L |
| Pack Size | 1 |
