Series MD Series DC Axial Fans

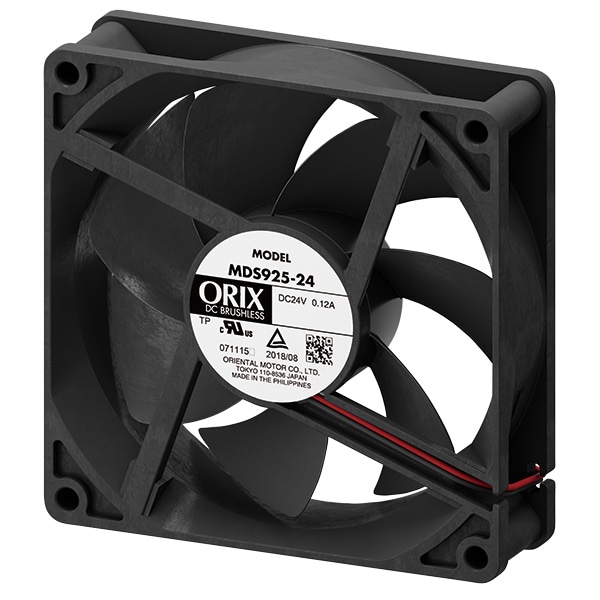

3.62 in. (92 mm) DC Axial Fan with Alarm
The MD Series A Type features a built-in alarm circuit that the host controller can recognize if the fan speed drops. This is important for noticing quick drops in the cooling capacity of the fan caused by a service life of the fan or by the ingress of a foreign objects.- Alarm Type
Documents
Technical Specifications
| Fan Type | Axial Fan |
| Frame Size | 3.62 in |
| Thickness | 0.98 in. |
| Power Supply | 24 VDC |
| Current | 0.12 A |
| Type | A Type (with Alarm) |
| Function | Stall Alarm - Electronic |
| Connection Type | Lead Wire |
| Speed (r/min) | 3800 |
| Max. Air Flow | 59 CFM |
| Max. Static Pressure | 0.243 inH2O |
| Noise Level | 35 db (A) |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Safety Standards | TUV |
| CE Marking | EMC Directives |
| Insulation resistance | 10 MΩ or more when 500 VDC is applied between the windings and the frame under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 500 VAC at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after continuous operation under normal ambient temperature and humidity |
| Overheat Protection | Equipped with a built-in burnout protection circuit |
| Ambient temperature range | -4ºF ~ 158ºF (-20ºC ~ 70ºC) |
| Ambient Humidity | 20 to 85% non-condensing |
| Output Mode | Open-collector output |
| Output Condition | Operation: L level (Internal transistor ON)When locked: H level (Internal transistor OFF) |
| Maximum Rating | Maximum applied voltage: 27.6 VDC max.Maximum current: 5 mA max. |
| Delay Function | Not built-in: External delay circuit is required to prevent alarm detection when starting the fan. The delay time should be at least 1 second. |
