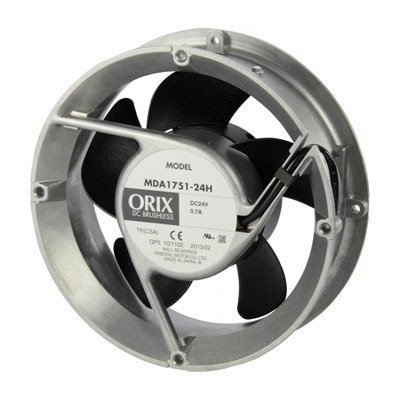

Cooling Fan
MDA1751-24B
Official DistributorSKU
ORIMDA175124B
6.77 in. (172 mm) DC Axial Fan with Alarm
The MDA series features a built-in alarm circuit that the host controller can recognize if the fan speed drops. This is important for noticing quick drops in the cooling capacity of the fan caused by a service life of the fan or by the ingress of a foreign objects.- Alarm Type
Technical Specifications
| Fan Type | Axial Fan |
| Frame Size | 6.77 in |
| Thickness | 2.01 in. |
| Power Supply | 24 VDC |
| Current | 0.70 |
| Function | Low Speed Alarm - Contact: ON |
| Connection Type | Lead Wire |
| Speed (r/min) | 3200 |
| Max. Air Flow | 212 CFM |
| Max. Static Pressure | 0.55 inH2O |
| Noise Level | 47 db (A) |
| Fan Kit | Fan Only |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Safety Standards | UL |
| Alarm Type | Contact |
| Alarm Activation Speed | 1800 ± 400 r/min |
| Output Mode | Relay output |
| Output Condition | Normal operation: Contact ONAlarm output: Contact OFF |
| Maximum Rating | Maximum applied voltage: 30 VDC max.Maximum current: 30 mA max. |
| Delay Function | Built-in starting delay time: 10 sec. max.(The alarm function starts monitoring within 10 seconds after the power is turned on.) |
Why Proax for Oriental Motor MDA1751-24B?
Proax is the authorized distributor of Oriental Motor MDA1751-24B. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MDA175124B |
| Pack Size | 1 |
