DRLM60-05B4MN-K
Official DistributorSKU
ORIDRLM6005B4MNK

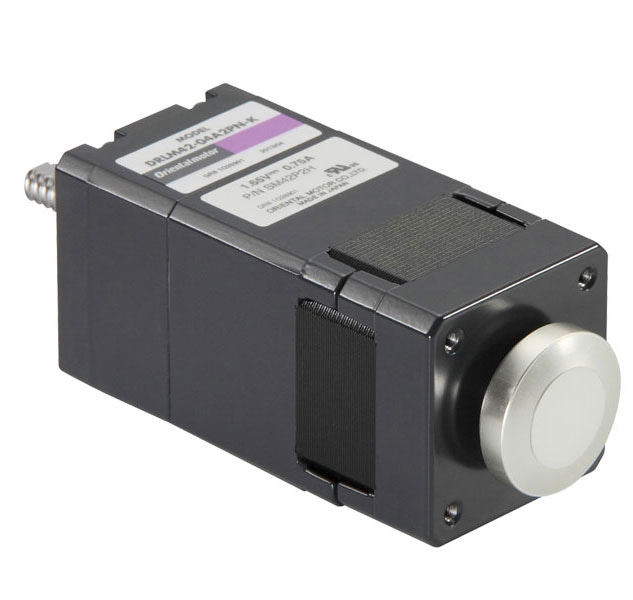

Compact Linear Actuator
Compact linear actuator that incorporates a stepper motor with an integrated ball screw to achieve high-precision positioning linear motion.Performance is improved by reducing the number of components such as couplings and secondary external guides to make equipment more compact, quicker to install with less parts to order.- Low Vibration
- High Positioning Accuracy
- Reliable Design and Structure
Technical Specifications
| Motor Type | 5-Phase |
| Actuator Frame Size | 60 mm |
| Drive Method | Ground Ball Screw |
| Type | High-Resolution |
| Guide | Not Equipped |
| Electromagnetic Brake | Not Equipped |
| Adjusting Knob | Equipped |
| Lead | 4 mm |
| Stroke | 50 mm |
| Actuator Connection Type | Connector |
| Lead Wires | 5 |
| Max. Vertical Transportable Mass | 30 kg |
| Max. speed | 22 mm/s |
| Max. Thrust Force | 300 N |
| Max. Holding Force | 300 N |
| Resolution | 0.00 mm |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Insulation resistance | 100 MΩ or more when 500 VDC megger is applied between the motor windings and case. |
| Dielectric strength | Sufficient to withstand 0.5 kV at 50 Hz or 60 Hz applied between the motor windings and case for 1 minute. |
| Ambient temperature range | 32ºF ~ 104ºF (0ºC ~ 40ºC) (nonfreezing) |
| Ambient Humidity | 85% or less (noncondensing) |
Why Proax for Oriental Motor DRLM60-05B4MN-K?
Proax is the authorized distributor of Oriental Motor DRLM60-05B4MN-K. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | DRLM6005B4MNK |
| Pack Size | 1 |
