S2C-H01
Official DistributorBy ABB
SKU
ABBS2CH01
MPN
2CDS200970R0031
Weight
0.008 kg

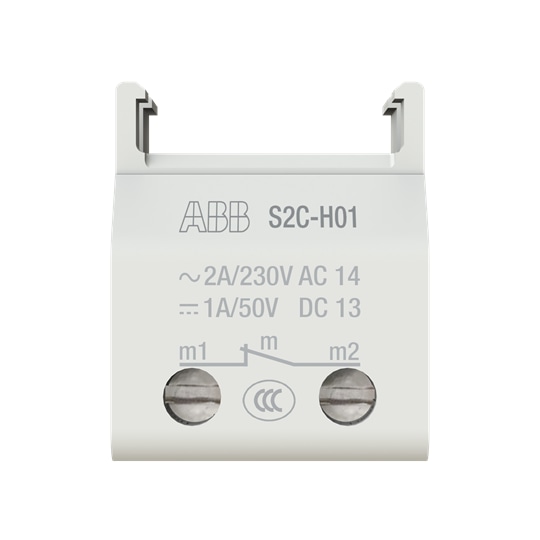

S2C-H01 Bottom-fitting auxiliary contact S2C-H01 Bottom-fitting auxiliary contact 1NC
Technical Specifications
ABB EcoSolutions
| Environmental Product Declaration - EPD | 9AKK108468A9282 |
Technical
| Function | Auxiliary Contact |
| Suitable for | S200 |
| Suitable for | S200M |
| Suitable for | S200P |
| Suitable for | S200S |
| Suitable for | S200 MT |
| Suitable for | S200 MTR |
| Suitable for | S200 MUC |
| Suitable for | S300P |
| Suitable for | DS-ARC1 |
| Suitable for | SD200 |
| Suitable for | DS201(2019) |
| Suitable for Product Class | Miniature Circuit Breaker |
| Suitable for Product Class | Residual Current Device |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 0 |
| Accessory Type | Auxiliary Contact |
Electrical
| Power Loss | 0.5 W |
| Power Loss | Maximum 0.5 W |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
Dimensions
| Product Net Width | 17.4 mm |
| Product Net Height | 21.2 mm |
| Product Net Depth / Length | 23.1 mm |
| Product Net Weight | 0.008 kg |
Engineering
| EPLAN Data | 9AAC179079_EPLAN |
Installation
| Instructions and Manuals | GHS2007023P0006 |
| Mounting Position | bottom |
Why Proax for ABB S2C-H01?
Proax is an authorized distributor of ABB S2C-H01 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | S2CH01 |
| Pack Size | 1 |
