Brushless DC Motor
BLM230HK-GFS
Official DistributorSKU
ORIBLM230HKGFS

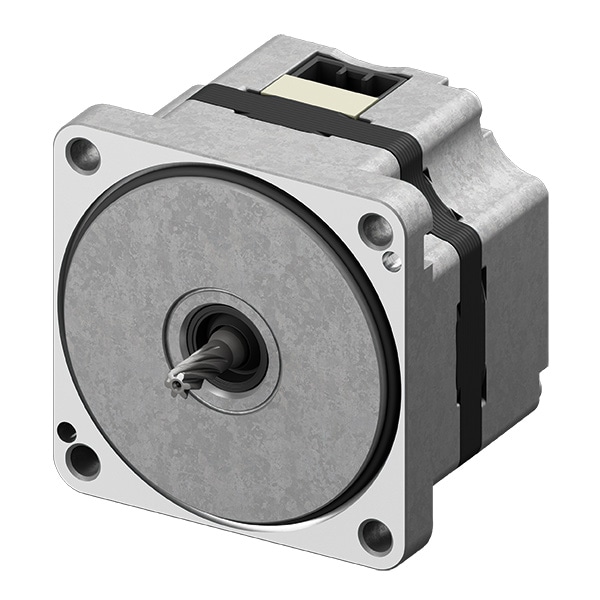

Brushless DC Motor
Pinion shaft motor for use with a gearhead (sold separately). *Pinion Shaft not shown.Documents
Technical Specifications
| Motor Type | Brushless DC Motor |
| Frame Size | 2.36 in |
| Output Power | 30 W (1/25 HP) |
| Shaft/Gear Type | Pinion Shaft (Gearhead required - sold separately) |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Electromagnetic Brake | Not Equipped |
| Insulation resistance | 100 MΩ or more when 500 VDC megger is applied between the windings and the frame after continuous operation under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 0.5 kVAC at 50Hz applied between the windings and the frame for 1 minute after continuous operation under normal ambient temperature and humidity. |
| Insulation Class | 0ºC ~ +50ºC (+32ºF ~ +122ºF) (nonfreezing) |
| Ambient Humidity | 85% max. (noncondensing) |
| Degree of Protection | IP65 (excluding connectors) |
Why Proax for Oriental Motor BLM230HK-GFS?
Proax is the authorized distributor of Oriental Motor BLM230HK-GFS. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BLM230HKGFS |
| Pack Size | 1 |
