BWS316TPN
Official DistributorBy ABB
SKU
ABBBWS316TPN
MPN
2CMA142417R1000
Weight
0.32 kg

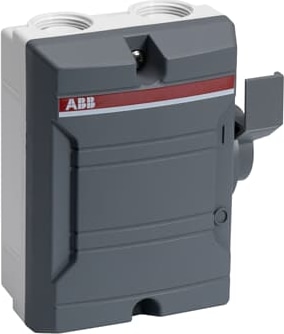

Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specifications
Dimensions
| Product Net Width | 111 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.32 kg |
Technical
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top and/or Bottom |
| Cable Outlets Per Side | 2xM25 / 2xM25 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² |
| Connecting Capacity Main Circuit | Screw Clamp / PE Terminal 1pc,0.75 ... 10 mm² |
| Conventional Free-air Thermal Current (Ith) | 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle color | Grey |
| Handle Type | Side-operated handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 25 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 25 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 10 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 7.5 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 7.5 kW |
| Rated Operational Voltage | Main Circuit 690 V |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening torque | Main Circuit 1.2 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening torque | Main Circuit 1.2 N·m |
Why Proax for ABB BWS316TPN?
Proax is an authorized distributor of ABB BWS316TPN and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
