SKU
Digital panel meter, DIN 48x24 mm, DC voltage/current + PNP input, 2x relay outputs, includes color display function, without data transmission output
Documents

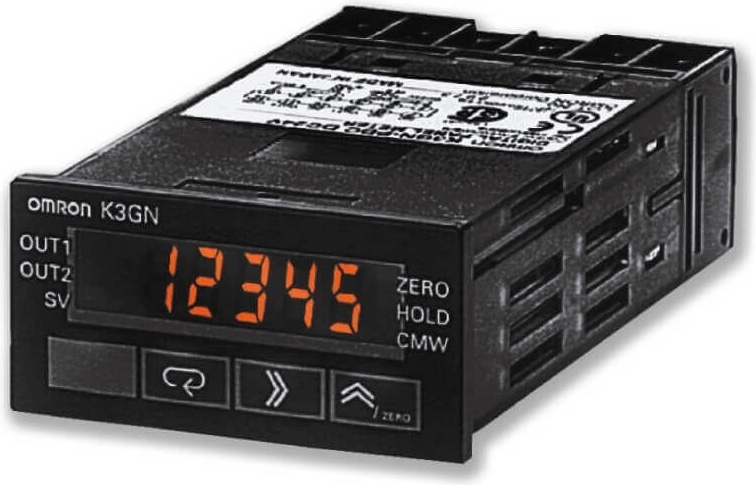

K3GN 1/32 Digital Panel Meter
Digital Process Panel Meter 5-Digit 2-Color Display - 1/32 DIN
The K3GN is able to cover a wide variety of applications with its 3 main functions: process meter, RPM processor/tachometer and digital data display for PC/PLC. Configuration is easy and the design is advanced and compact.
- Process indicator DC voltage/current
- RPM process/tachometer
- Digital data display for PC/PLC
- Very compact 1/32 DIN housing: H 24 x W 48 x D 83mm
- 5-digit display with programmable display colour, in red or green
Technical Specifications
| Size | 1/32 DIN |
| DC Voltage | Yes |
| DC Current | Yes |
| Rotary Pulse | Yes |
| Display | Single Line |
| Input Sensor | PNP |
| Output Type | 2 Relay outputs (SPST-NO) |
| Display Range | -19999 to 99999 |
| Supply Voltage | 24 VDC |
Why Proax for Omron K3GN-PDC 24VDC?
Proax is an authorized distributor of Omron K3GN-PDC 24VDC. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | K3GNPDC24VDC |
| Pack Size | 1 |
