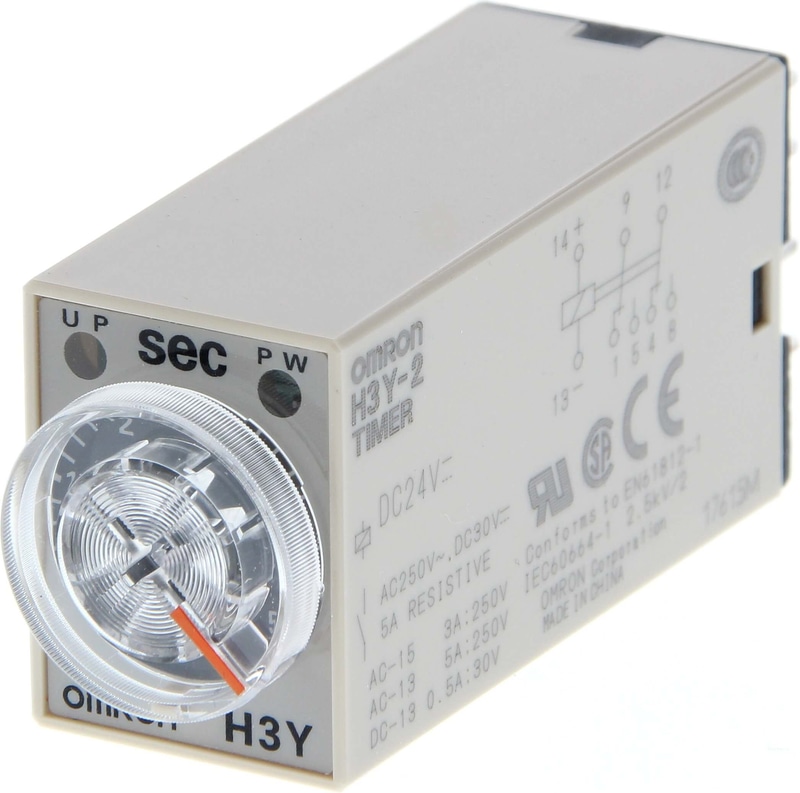

H3Y
Mono-function Solid State Timer
The H3Y Series solid state timers feature an on delay and fixed time range. The front face features a large transparent time setting knob that can be adjusted using a screwdriver or by hand.
- On Delay Timer
- Fixed Time Range
- DPDT and 4PDT models available
- Plug-in and PCB terminals available
- 0.04 s to 3 h
- 100-120 VAC, 200-230 VAC, 24 VAC, 12,24,48,125,100,110 VDC compatible
- Confirms to EMC standards
- Conforms to EN 61812-1 and approved by UL and CSA
- Adjustable transparent time knob
- Plugs into easy-to-wire PYF-__-PU sockets with Push-In Plus terminals
Technical Specifications
| Display | LED Indicator |
| Supply Voltage | 24 VDC |
| Time Ranges | 0.2 to 5 s |
| Setting Method | Analog Dial |
| Resetting method | Self Reset |
| Number of Operating Modes | 1 |
| ON-Delay Mode | Yes |
| Repeat Cycle Off Start Mode | No |
| Repeat Cycle On Start Mode | No |
| Signal ON/OFF Delay ON Start Mode | No |
| Signal ON/OFF Delay OFF Start Mode | No |
| Signal OFF Delay Mode | No |
| Interval Mode | No |
| One-Shot Output Mode | No |
| Power Off Delay | No |
| Power ON Delay | No |
| ON/OFF Adjustable Duty Cycle | No |
| Twin Timer | No |
| Stopwatch | No |
| Cumulative | No |
| On-Delay with Instantaneous Output | No |
| Star-Delta | No |
| Inputs | No Inputs |
| Output Type | 4PDT |
| Connection Type | 14 Pin Socket |
| Dimensions H x W x D mm | 28 x 21.5 x 56.6 mm |
Why Proax for Omron H3Y-4 DC24 5S?
Proax is an authorized distributor of Omron H3Y-4 DC24 5S. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | H3Y4DC245S |
| Pack Size | 1 |
