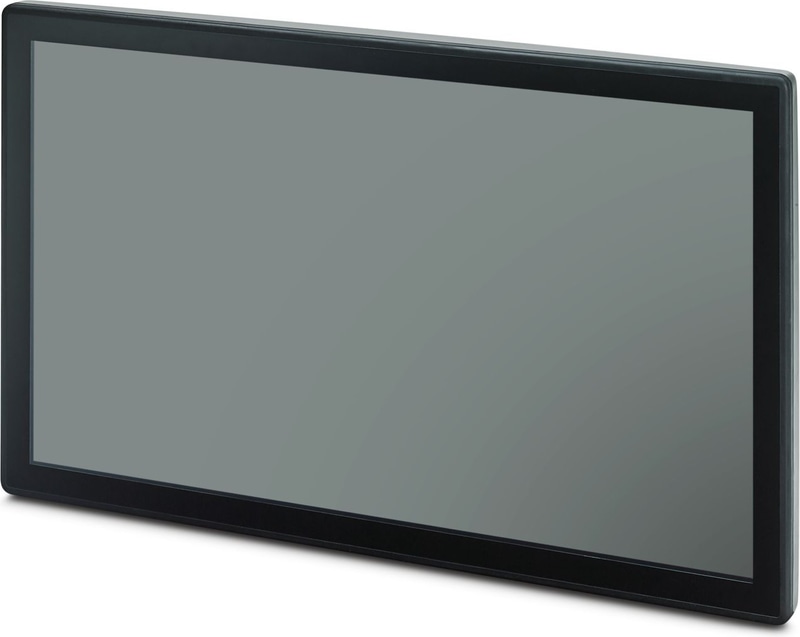

Similar figure
1261659
Official DistributorSKU
PHX1261659
MPN
FPM 23.8 69K
Weight
0.014 kg
Series FPM
FPM 23.8 69K - Monitor
Hygiene monitor with 60.5 cm/23.8" TFT display (capacitive multi-touchscreen), 1920 x 1080 pixels (Full HD) in all-around closed stainless-steel housing without screws or sharp edges.
- Robust and high-performance under extreme conditions
- Stable and resistant with a closed stainless-steel housing
- Hygienic design with passive cooling
- Easy mounting with boom adapter or VESA adapter
- Capacitive multi-touch display for convenient multi-finger operation with gloves
Technical Specifications
Notes
| Order information: | Please note that an adapter listed under “Accessories” is required to operate the device. |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Computer data
| Processor | without |
| Operating system | without operating system |
| RAM | without RAM |
| Data storage system | without data storage |
| Cooling | passive |
| Slots | without slots |
Display
| Display type | 60.5 cm / 23.8"-TFT |
| Screen resolution | 1920 x 1080 Pixel(s) (Full HD) |
| Touch technology | projective-capacitive (PCAP) |
| Display lighting type | LED |
| Brightness | 400 cd/m² |
| MTBF | 30000 h |
| Color spectrum | 16.2 million colors |
| Reading angle left | 89.00 ° |
| Reading angle right | 89.00 ° |
| Reading angle top | 89.00 ° |
| Reading angle bottom | 89.00 ° |
System properties
| User software | without user software |
Supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 18 V DC ... 30 V DC |
Interfaces
| Interfaces | 3x USB 2.0 |
| Interfaces | 1x USB server |
| Optional interfaces | Without optional interface |
| Monitor Output | 1x DisplayPort |
| Monitor Output | 1x HDMI |
| Network | Without network |
| Bus system | without |
External dimensions
| Width / Height / Depth | 578 mm / 347 mm / 67 mm |
Material specifications
| Material front plate | Glass (3 mm), hardened and non-reflective |
| Housing Material | Stainless steel, fully enclosed |
Ambient conditions
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | 0 °C ... 45 °C |
| Permissible humidity (operation) | 10 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 85 % (non-condensing) |
| Shock | DIN EN 60068-2-27 |
| Vibration (Operation) | DIN EN 60068-2-6 |
Mounting
| Mounting Type | VESA holder (via adapter) |
| Mounting Type | Tube mounting (via adapter) |
| Holder system | VESA MIS-D 100 C |
Why Proax for Phoenix Contact 1261659?
Proax is an authorized distributor of Phoenix Contact 1261659 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
