Official DistributorSKU
MPN
UC-WMTBA (29X8)/PP RD
Weight
0.01 kg

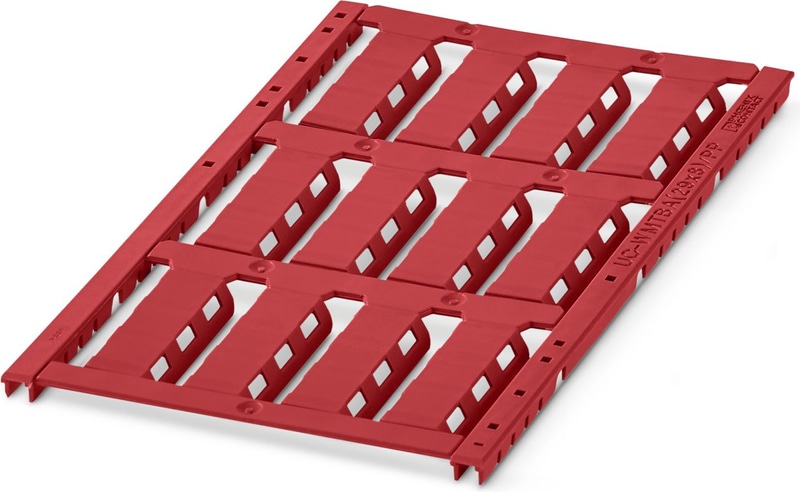

UC-WMTBA (29X8)/PP RD - Cable marker
- The UC-WMTBA ... UniCard labeling range includes markers that can be secured using standard cable binders
- For large-surface marking of conductors and cables >6 mm in diameter
- High durability of the marking materials as well as the labeling due to PP material and laser marking
- Thanks to their angular shape the markers fit perfectly onto cables
- The markers, supplied in uniform sheets, can be marked quickly and easily using the TOPMARK LASER or TOPMARK NEO
Technical Specifications
Notes
| Note regarding marking | Polypropylene (PP) sheets can be processed with the TOPMARK NEO with S/N 2004000390 and higher.A conversion kit is available for devices with serial numbers that are lower.Please contact your sales representative for conversion of your TOPMARK NEO. |
| Note on application | According to the US “Code of Federal Regulations, Food and Drugs (FDA), 21 CFR Ch. 1”, the polypropylene rating plates UC-WMTBA (...)/PP xxx and UC-WMTBA-D (...)/PP xxx in light blue, light gray, red, blue, signal white and light red may be safely used for identification of machines intended for food processing. |
| Note on application | The polypropylene rating plates UC-WMTBA (...)/PP xxx and UC-WMTBA-D (...)/PP xxx may be safely used for identification of machines intended for food processing. They may be in direct contact with dry, watery, non-acidic, alcoholic as well as fatty food, to which the D1 food simulant is assigned in accordance with Regulation (EU) No. 10/2011. |
Product properties
| Area of application | Food and beverage industry |
| Type | Card form |
| Product property | High resistance to chemicals |
Marking
| Number of individual labels | 12 |
| Number of individual labels per row | 4 |
| Identification technology | Direct laser marking |
Dimensions
| Width | 13.5 mm |
| Length | 29 mm |
External dimensions
| Outside diameter | 6 mm ... 136 mm |
Material specifications
| Color | red |
| Material | PP |
| Components | free from silicone and halogen |
Cable/line
| External Cable Diameter | > 6.00 mm |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
UV resistance
| Specification | ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Specification | IEC 60068-2-2:2007-07 |
| Result | Test passed |
| Duration | 96 h |
| Maximum Temperature | +85 °C |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 90 °C (< 0°C, only static loads) |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 24 months |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | Assembly with cable ties |
Why Proax for Phoenix Contact 1199638?
Proax is an authorized distributor of Phoenix Contact 1199638 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
